In the evolving high-rise residential landscape of Queensland, penthouses represent the pinnacle of both design intent and market positioning. As the flagship product in a development, the penthouse must deliver exceptional architectural appeal and measurable long-term performance in thermal regulation, structural compliance, and occupant comfort.
Proline, a Queensland-based manufacturer, offers fully integrated, code-compliant envelope solutions for penthouses. From glazed doors to ventilated façades, aluminium railings to shading systems, we help developers meet local demands with elegance and efficiency.
1. Façade and Glazing Systems for Elevated Exposure
Penthouses require structurally reinforced, thermally efficient façades. Our solutions include:
- Unitized curtain walls with internal drainage and thermal breaks
- Low-E double-glazed floor-to-ceiling sliding doors
- Ventilation windows with acoustic insulation
| System Type | U-Value (W/m²·K) | SHGC | Acoustic Rating (Rw) |
|---|---|---|---|
| Standard Aluminium Window | 5.8 | 0.72 | 30 dB |
| Proline Double-Glazed System | 2.2 | 0.38 | 42 dB |
2. Aluminium Railing Systems for Safety and Aesthetic Unity
Proline railings ensure both code compliance and architectural continuity:
- Slim-profile or frameless aluminium systems with glass or vertical slats
- Mounting options: side-fix, top-mount, or core-drilled
- Coastal-grade powder coating (6063-T5 aluminium)
Project Spotlight: South Brisbane penthouse used concealed channel balustrades for uninterrupted skyline views.
| Parameter | AS Standard | Proline Spec |
|---|---|---|
| Load Capacity | AS1170.1 | 1.5 kN/m |
| Height | AS1657 | 1000 mm |
| Corrosion Rating | N/A | Class 4 - Marine Grade |

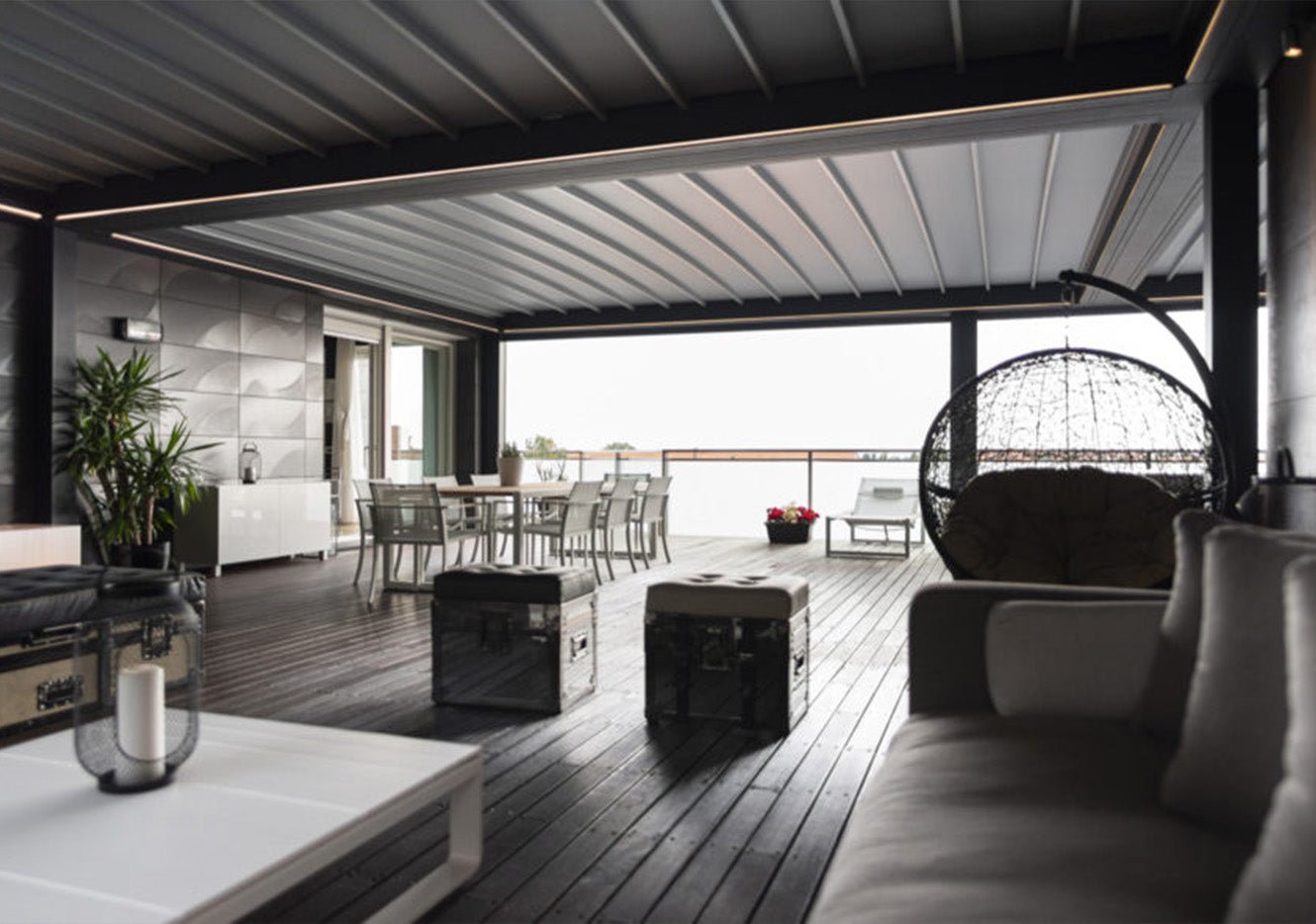

3. Shading Systems and Architectural Awnings
Thermal performance depends on proper solar management. Our shading options include:
- Fixed horizontal awnings over windows and sliding doors
- Adjustable louvre systems integrated into façade design
- Orientation-specific shading depth and spacing
| Orientation | Recommended Depth | Summer Heat Reduction |
|---|---|---|
| North | 600 mm | 35% |
| East/West | 900 mm | 55% |
4. Developer Support and Local Expertise
Partnering with Proline offers your project the following locally grounded advantages:
-
Complete AS-certified documentation, including AS2047, AS4284, and AS1170.1
-
Cost estimation and material selection support to help optimize overall project budgets
-
Prefabricated systems and installation-ready components to shorten on-site construction time
-
Over 15 years of experience delivering residential and commercial high-rise projects across Brisbane, Gold Coast, Cairns, and surrounding regions
Conclusion
Penthouses require exceptional façade performance. Proline supports Queensland developers with integrated window, railing, shading and façade systems that meet design intent, compliance, and project timelines.
Specify Proline for your next penthouse project—and build with confidence.
