The awning window opens outward at a small angle, allowing ventilation even in rainy conditions while keeping water out. It's perfect for Australia's climate, offering airflow and rain protection for homes and commercial buildings.
Specifications
Thermally broken aluminum window system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤1200mm / Height ≤2100mm
1.8mm
58mm
≤100kg
750pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<5600pa
≥0.25 Btu/(hr x ft² x ºF)
Sealing
Special Sealing Device:Aspecial sealing device isdesigned for sealing deadcorners in the corners.
Frame Design
When the windows are closed, thesash frame is seamlessly integrated,concise and neat,and cleaning ismore convenient.
Anti-falling design
The hinge and fixed frame connection, alongwith the opening sash, features a unique anti.falling mechanism that significantly reducesthe risk of the sash falling,enhancing safetyfor outward opening awning windows.
Frame Options

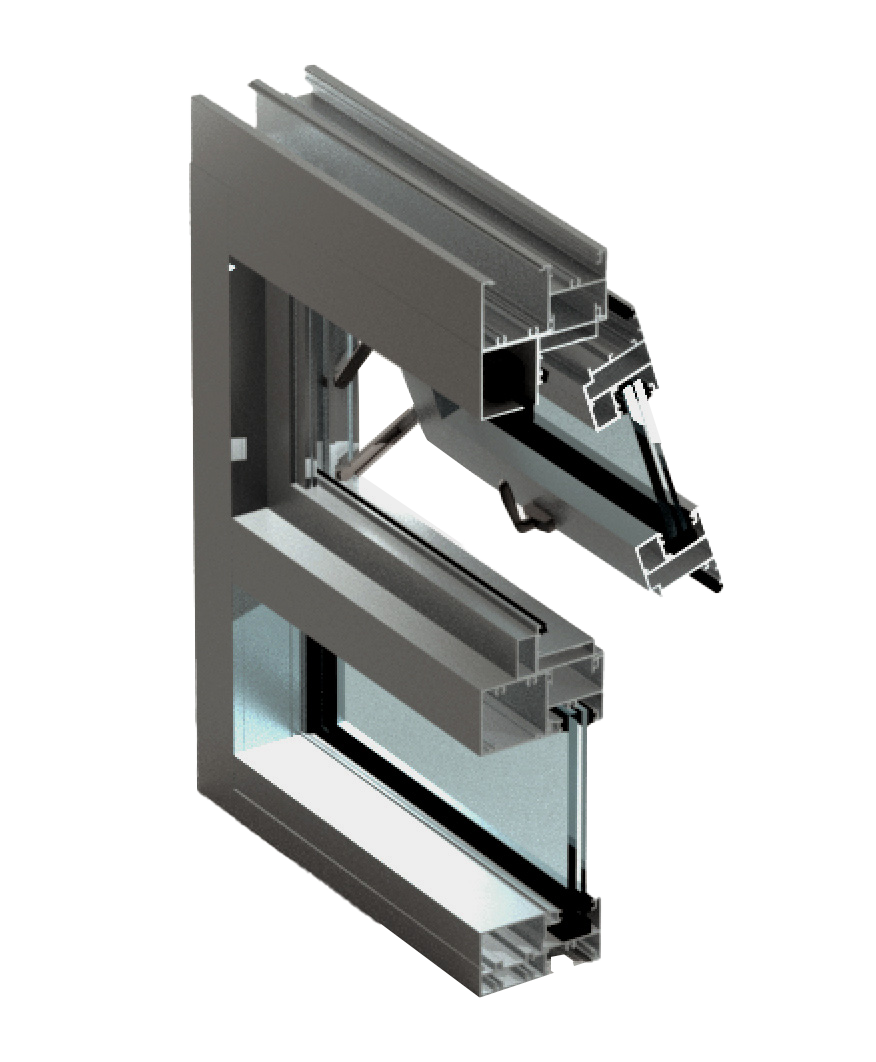

The frame is designed with reinforced aluminum profiles to provide stability for large operable sashes. Its multi-chamber structure improves thermal insulation, while the thermal break layer effectively reduces heat transfer. Varying wall thicknesses strengthen resistance against wind loads and ensure reliable performance in long-term use. The frame is also compatible with double and triple glazing, offering flexibility for both residential and commercial applications.

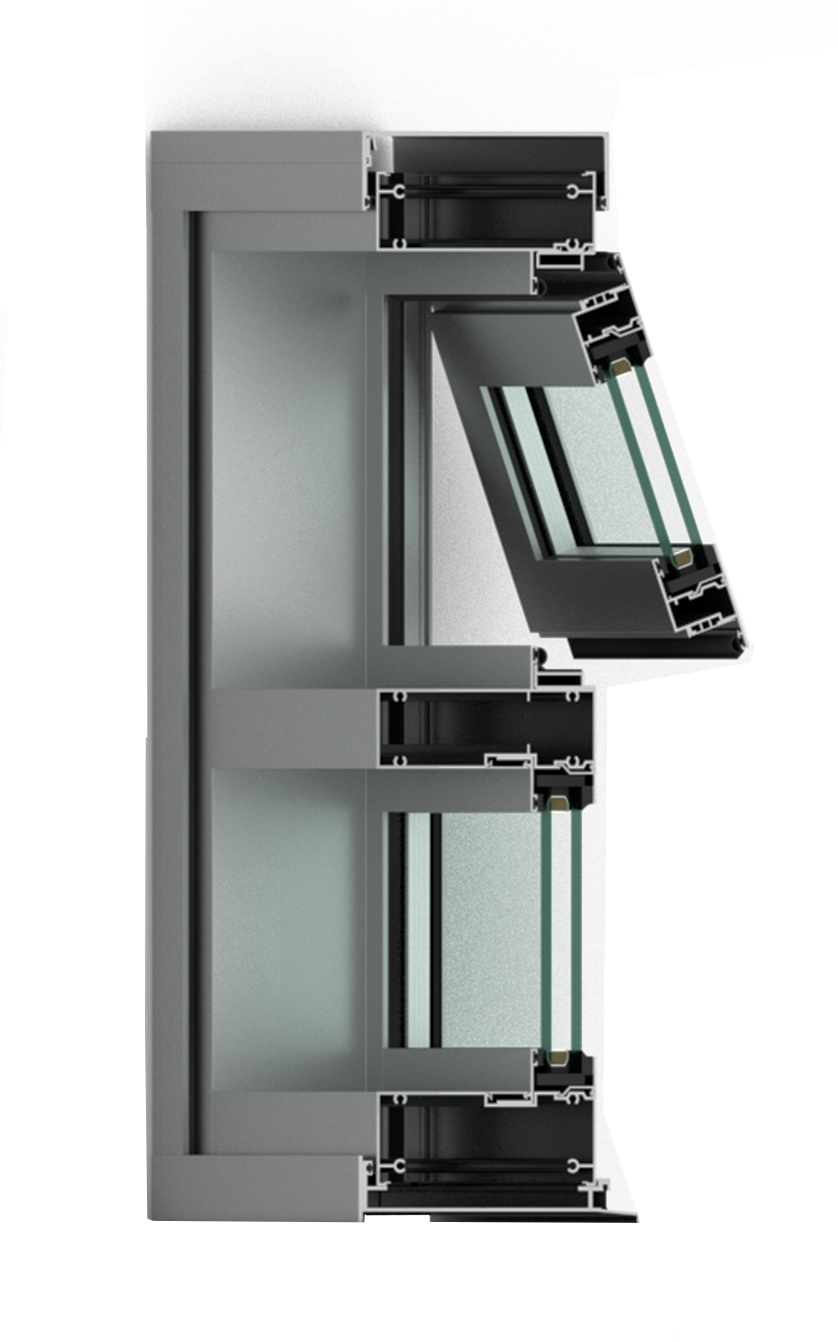

AWS70
This slim-profile awning window system features compact aluminium framing with double glazing integration, delivering clean sightlines and maximised daylight. Ideal for low to mid-rise residential projects across Queensland, it balances ventilation performance with NCC-compliant weather resistance.

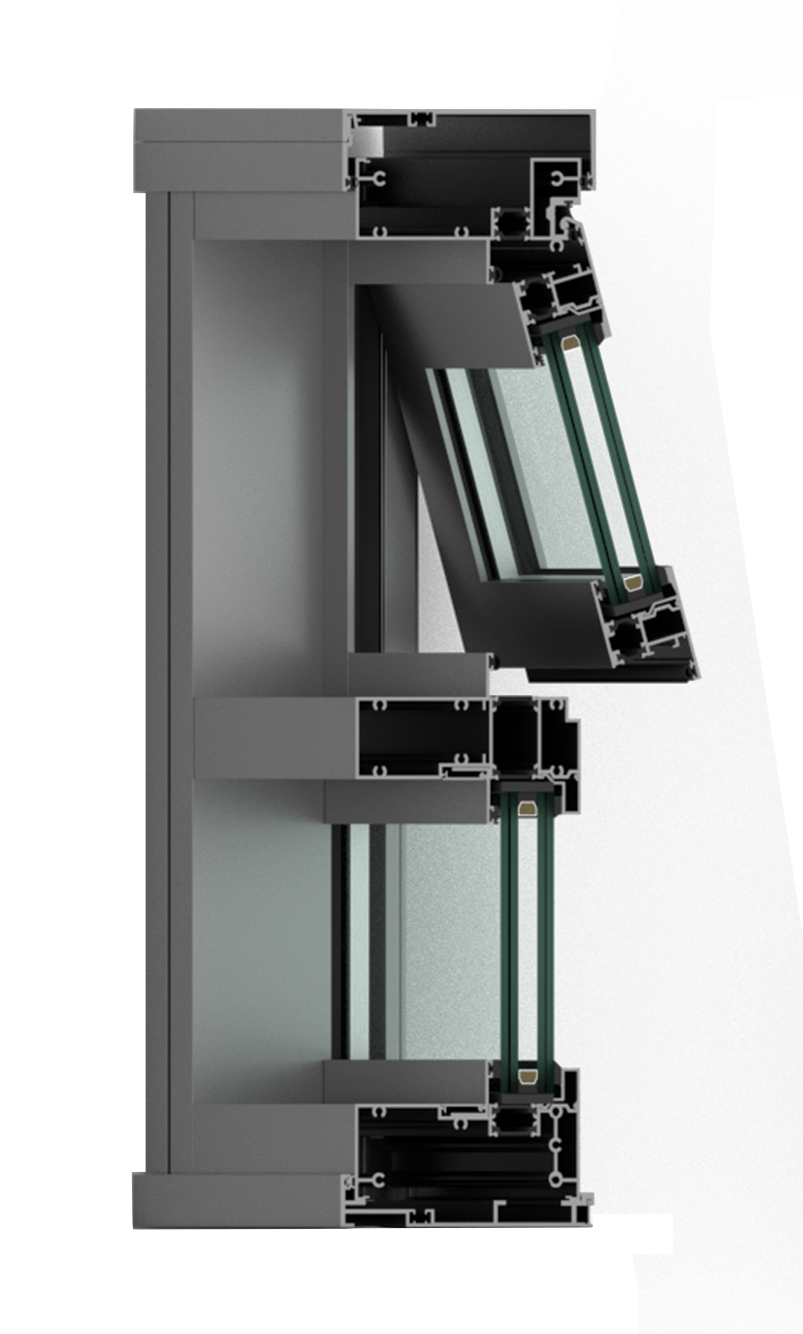

AWS90
Designed with deeper framing sections and enhanced structural chambers, this system improves wind load resistance for coastal and cyclone-prone regions in QLD. Thermal optimisation and multi-seal design enhance air-tightness and energy efficiency performance.

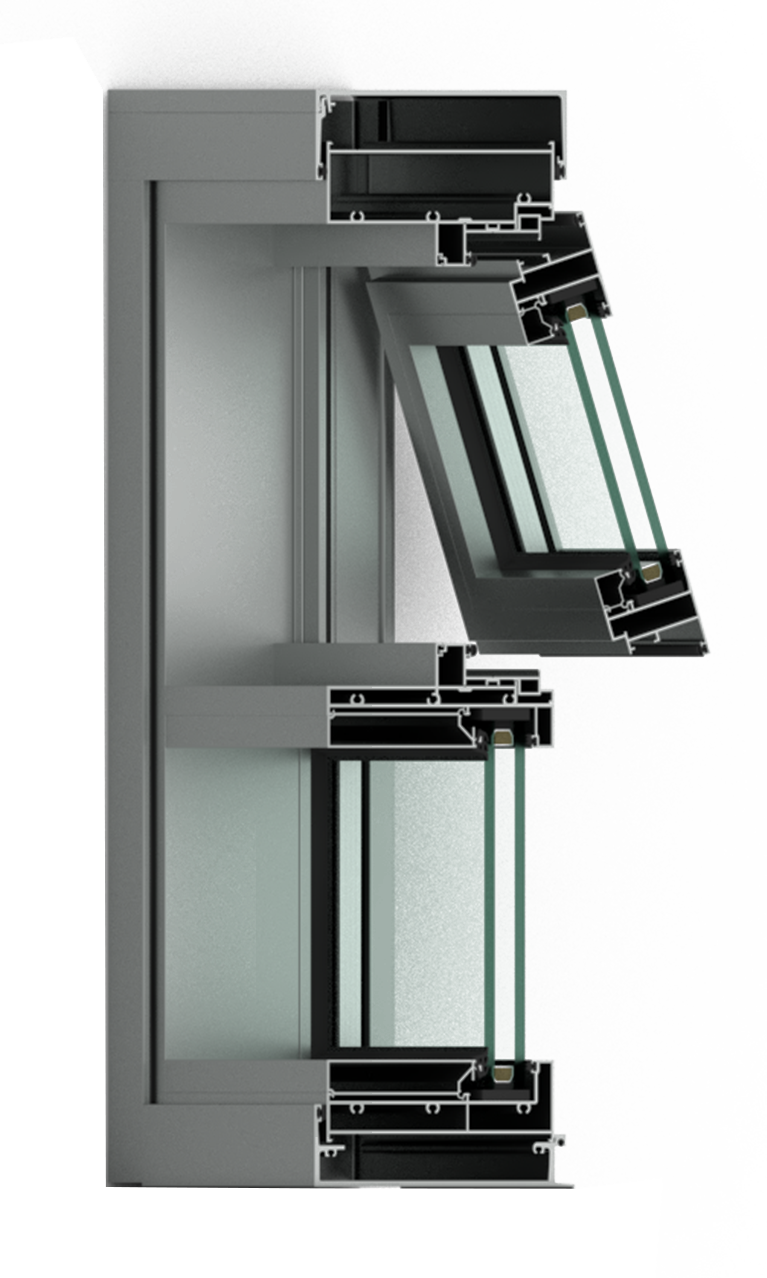

AWS100
Featuring a flush exterior appearance with integrated glazing lines, this awning system delivers a modern architectural aesthetic suited to Brisbane and Gold Coast developments. It combines concealed drainage design with reliable water resistance under heavy rainfall conditions.
Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low
Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.
Other Options
Screen Options
We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.
FAQ
Frequently asked questions about aluminum awning windows, covering performance, safety, and usability.
Why are awning windows well-suited for Queensland’s subtropical climate and residential projects?
Awning windows’ top-hung design allows ventilation even during rain, ideal for Queensland’s humid, rainy weather. They support natural airflow while preventing water ingress, helping maintain indoor comfort and reduce HVAC loads in residential developments.
How do awning windows fit with Queensland’s typical elevated and verandah-style homes?
Their outward top opening doesn’t occupy interior space, making them ideal for installation above doors or windows in verandahs or tight spaces common in Queensland homes. This preserves usable indoor areas while ensuring ventilation and weather protection.
Do awning windows meet performance and durability standards for Queensland residential projects?
Yes. With multi-point locking and high-grade compression seals, awning windows achieve excellent airtightness and water resistance, essential for Queensland’s variable weather. Their robust design reduces maintenance and supports long-term project value.
