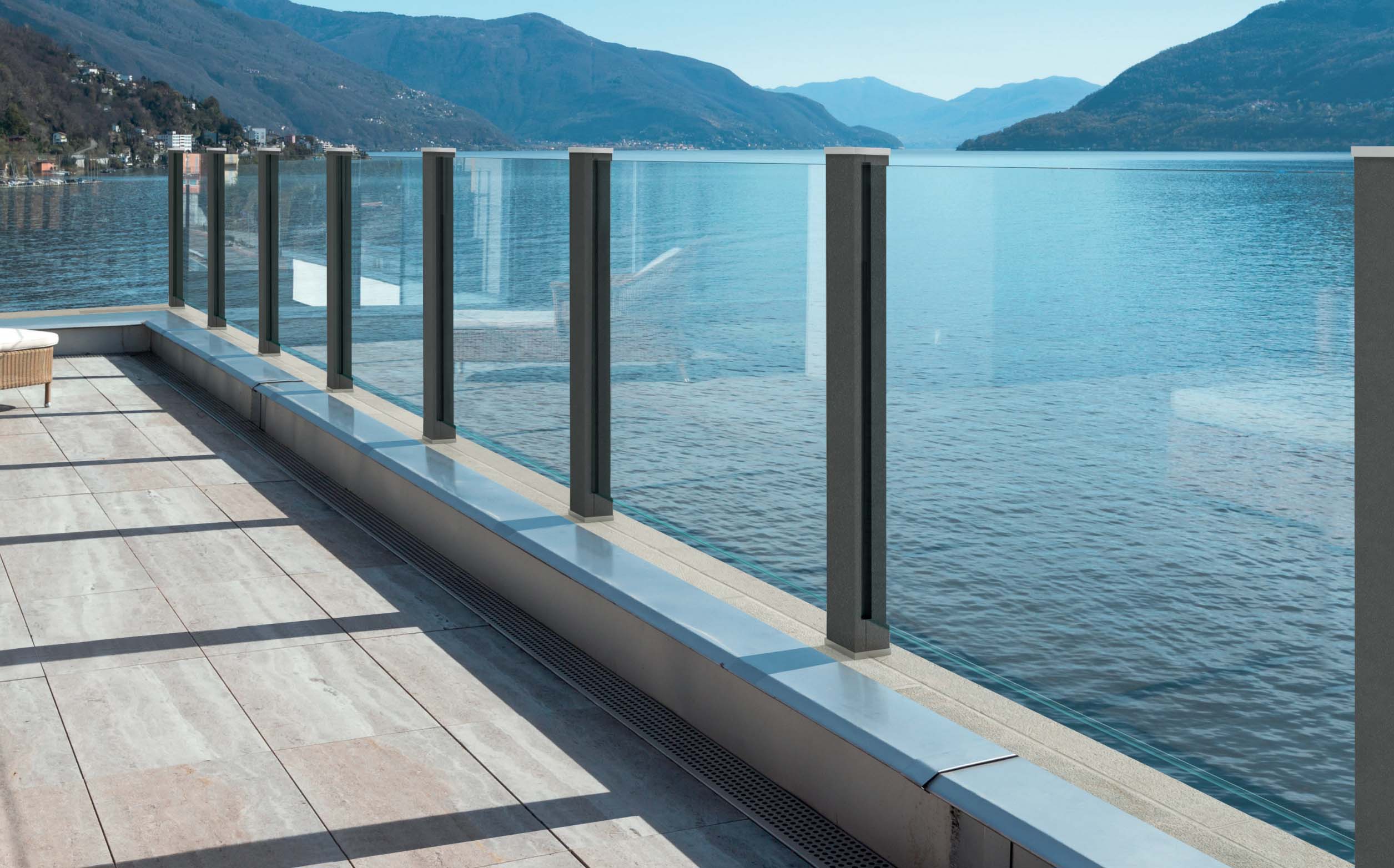

Our Glass Base Rail System is defined by strength, offering simple installation, clean lines, and gorgeous views. The glass base rail system is made up of a slim yet sturdy piece of aluminum metal that runs along the bottom of the railing, providing a sturdy foundation for holding up each glass panel.
Enhanced Safety
Framed design with tempered laminated glass provides extra protection against impact.
Strong Support
Robust aluminum frame ensures structural stability for residential and commercial use.
Compliance Ready
Designed to meet safety and building code requirements, suitable for high-traffic areas.

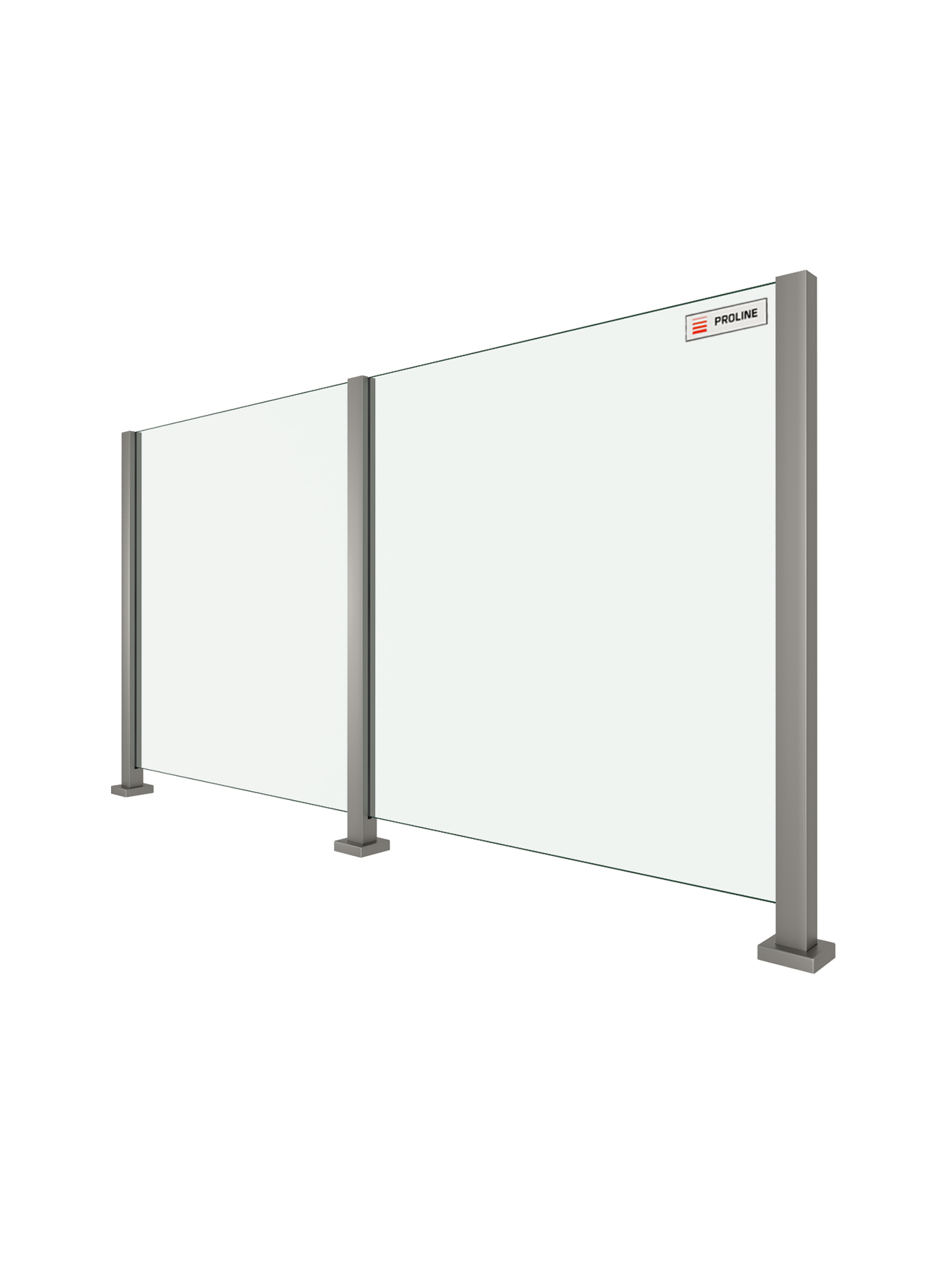

Configurations

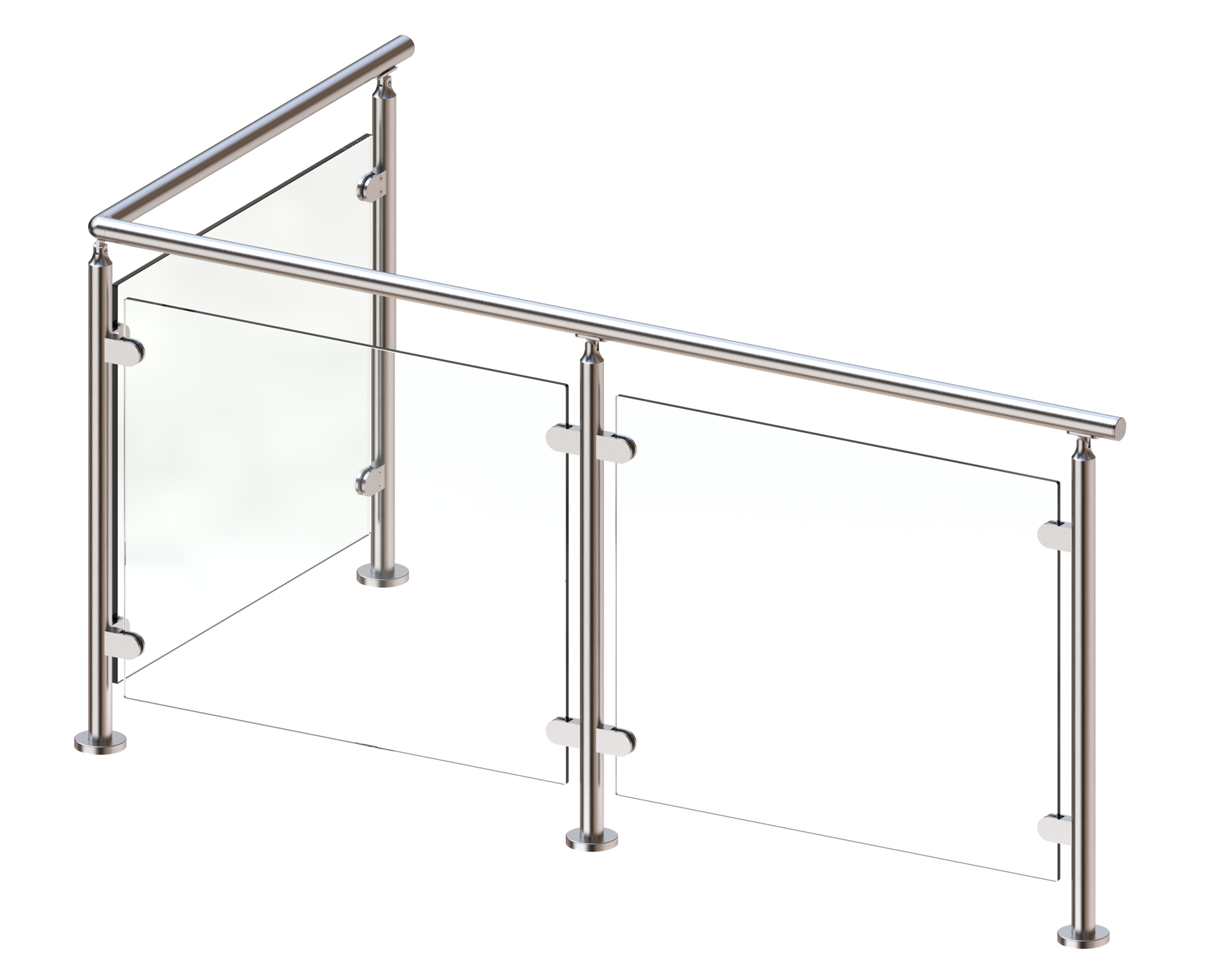

BGR01
Balustrade glass railing is a modern guardrail product with excellent decorative properties. Glass railings are easy to install and provide the best safety.
GLASS THICKNESS：10-13.14 mm
HEIGHT ：1067 mm / 1150 mm
MAX.SEPARATION：1200 mm
FINISH：Stain / Mirror/ Paint

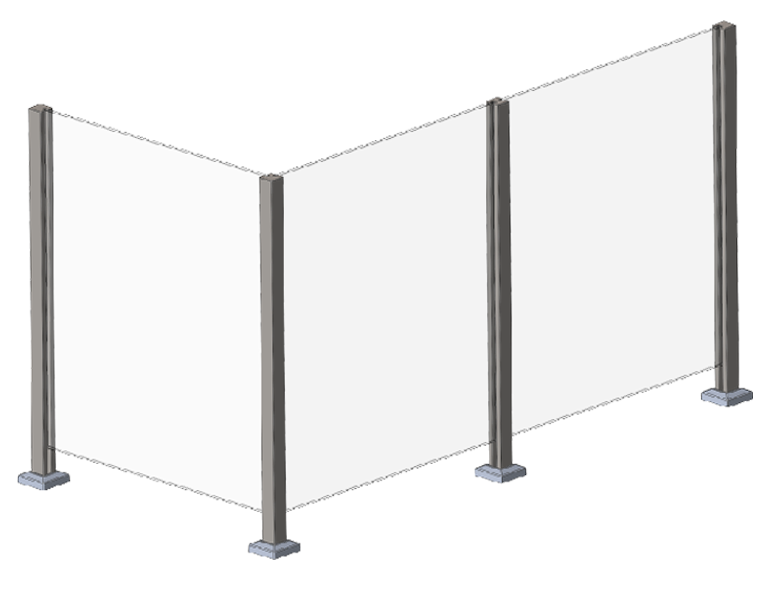

BGR02
Our aluminium balustrade railing offers a sleek, modern solution for balconies, decks, and staircases.
GLASS THICKNESS：10-13.14 mm
HEIGHT ：1067 mm / 1150 mm
MAX.SEPARATION：1200 mm
FINISH：Stain / Mirror/ Paint

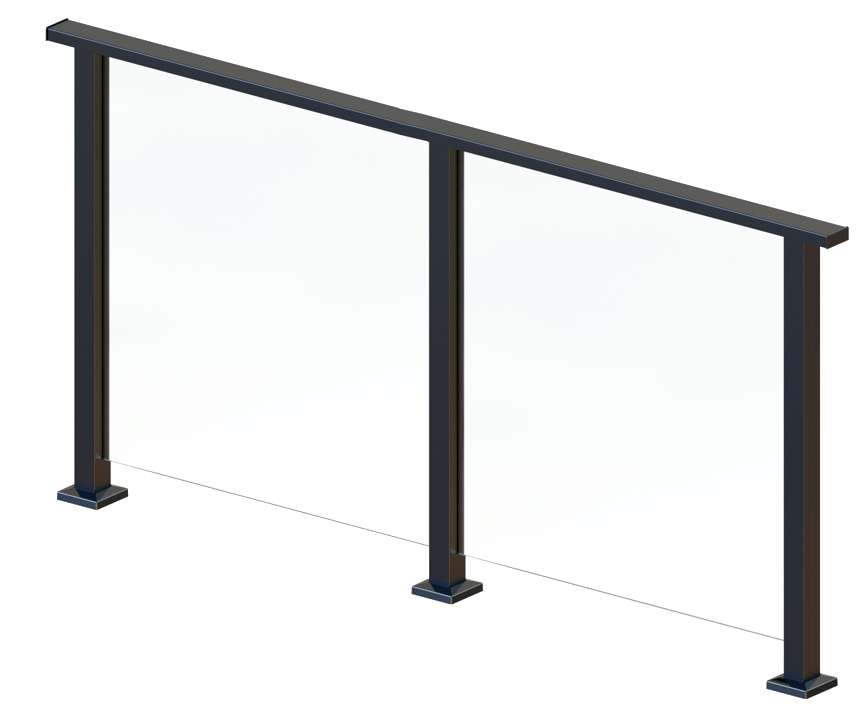

BGR03
Engineered for strength and durability, it meets safety standards for both residential and commercial projects.
GLASS THICKNESS：10-13.14 mm
HEIGHT ：1067 mm / 1150 mm
MAX.SEPARATION：1200 mm
FINISH：Stain / Mirror/ Paint

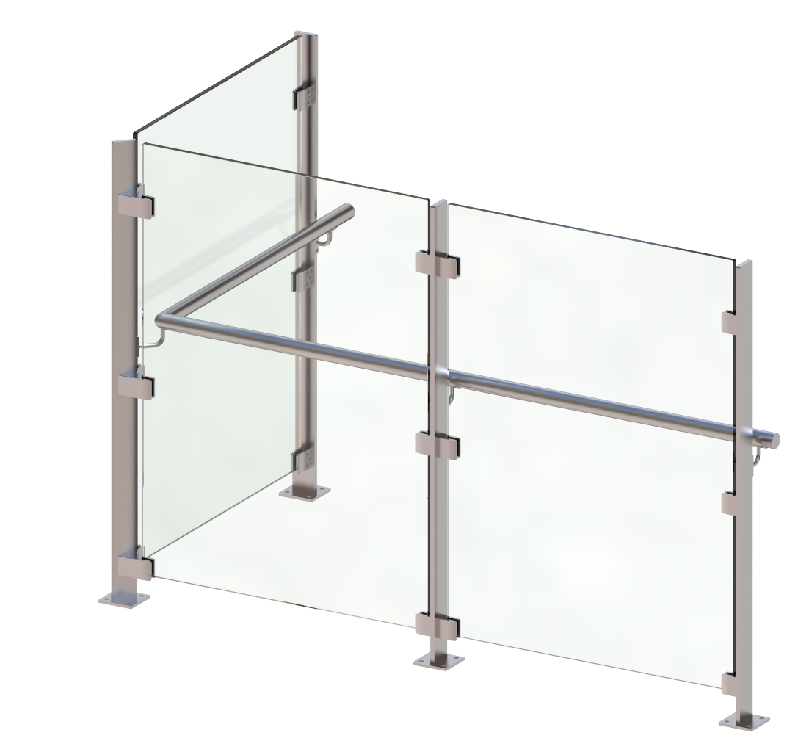

BGR04
Powder-coated finishes ensure weather resistance and a long-lasting, low-maintenance surface.
GLASS THICKNESS：10-13.52 mm
HEIGHT ：1067 mm / 1150 mm
MAX.SEPARATION：1200 mm
FINISH：Stain / Mirror/ Paint
Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low
Glass Type Options
We offer a variety of high-performance glass types for customers to choose from, combining safety, sound insulation, and energy efficiency to meet various building needs.

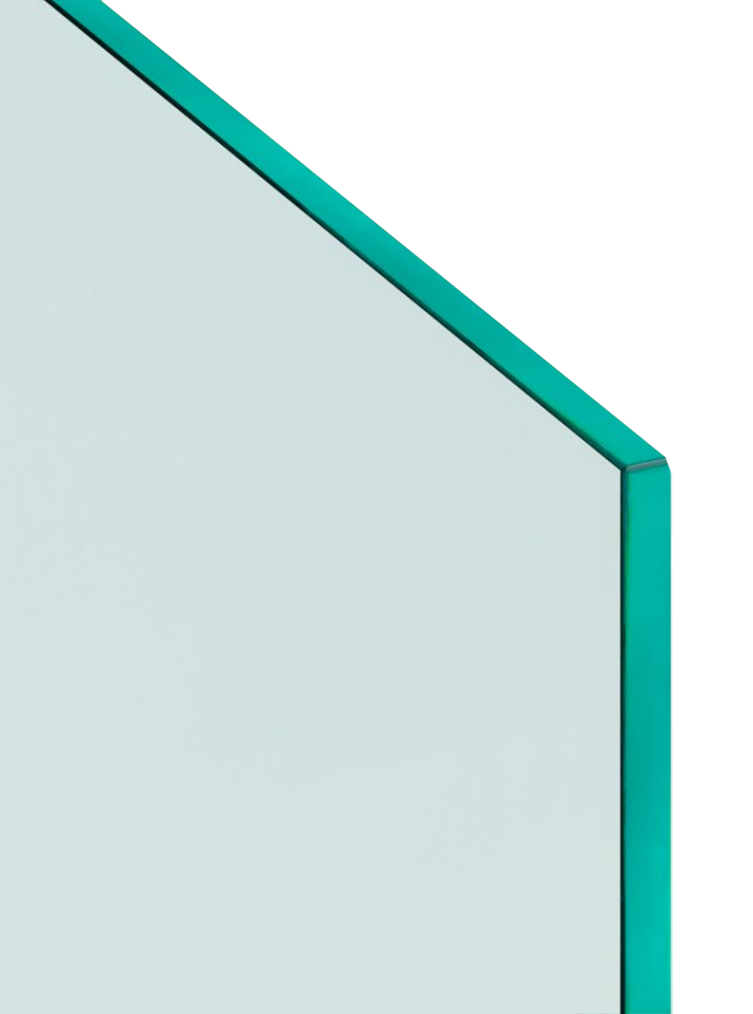

Tempered Glass
Characteristics：
- Formation of a compressive stress layer on the glass surface, enhancing mechanical strength and thermal shock resistance.
- Impact strength is 5 to 10 times greater than that of ordinary glass.
- Bending strength is 3 to 5 times that of ordinary glass.
- Load-bearing capacity is 3 to 5 times greater than that of standard glass.
- As a type of safety glass, fully tempered glass shatters into small, blunt-edged pieces, minimizing the risk of injury.

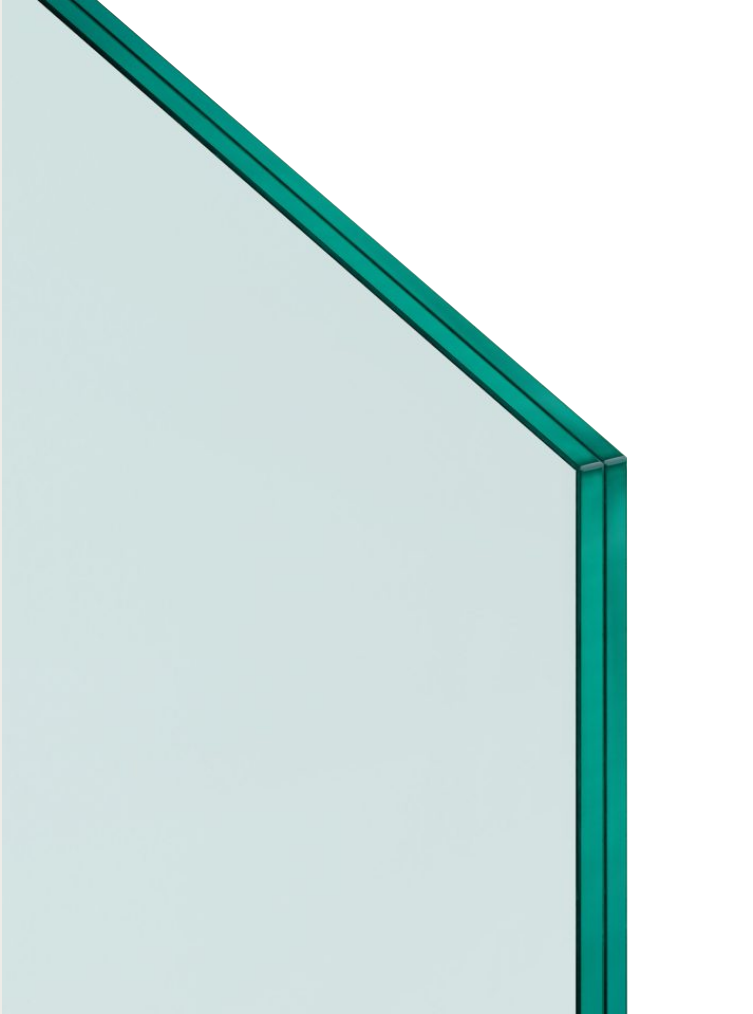

Laminated Glass
- Safety: Provides additional safety by preventing shards from scattering upon breaking, reducing the risk of injury. Laminated glass retains shards on the interlayer, while ordinary glass shatters into pieces.
- Sound Insulation: Excellent sound insulation, typically reducing the sound transmission class (STC) rating to about 30-40 decibels, compared to approximately 25 decibels for ordinary glass.
- UV Protection: Laminated glass blocks about 99% of ultraviolet rays, while ordinary glass typically blocks around 25%.
- Impact Resistance: The interlayer enhances the structural strength of the glass, making its impact resistance 2-5 times greater than that of standard single-pane glass.

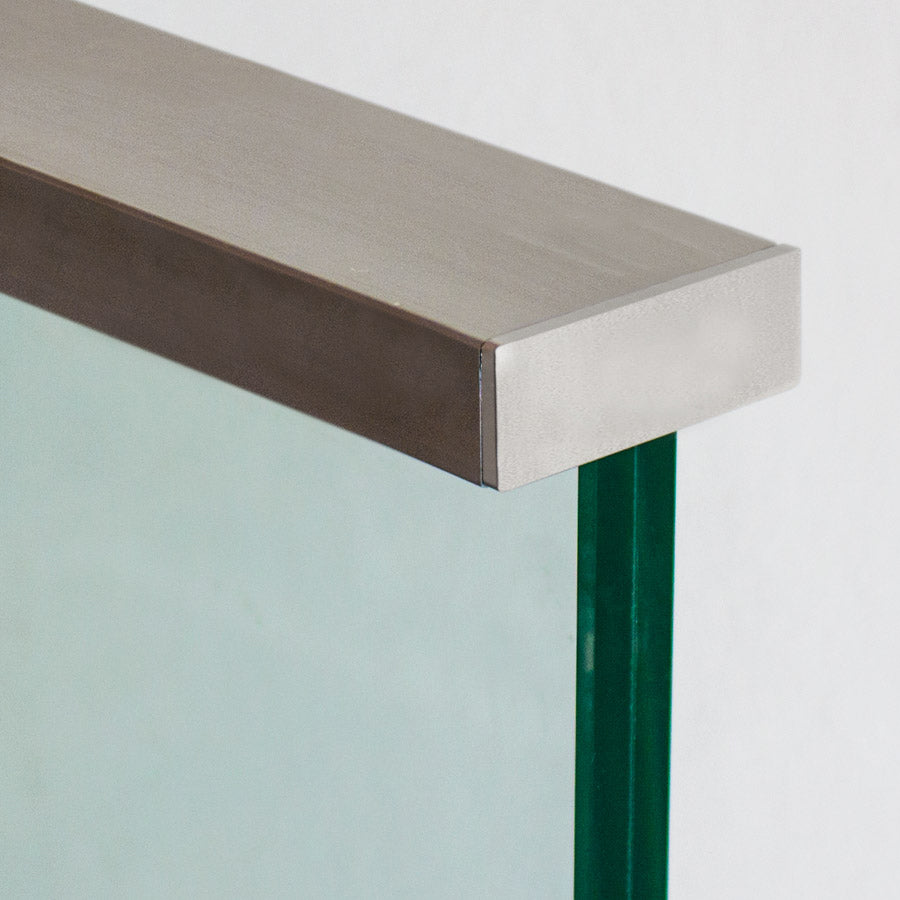

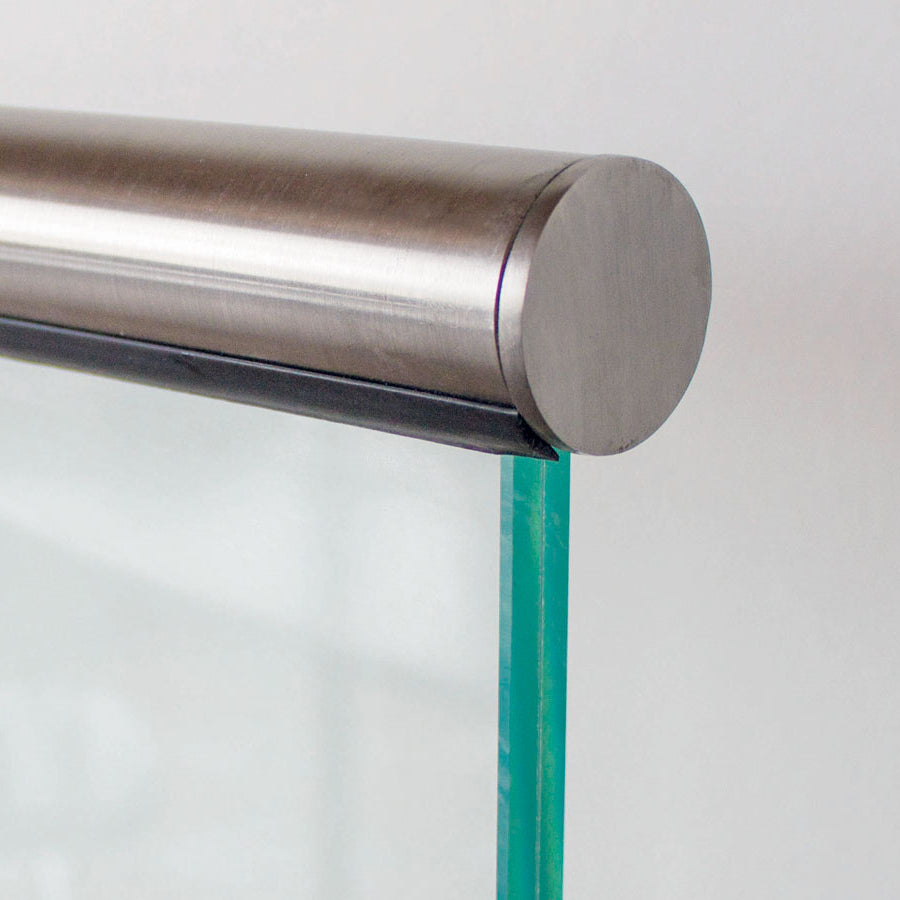

Hardrail
SECTIONS: 40 x 40 mm
MATERIALS: Stainless steel AISI 316
SECTIONS: 40 x 40 mm
MATERIALS: Stainless steel AISI 316
SECTIONS: 48 x 20 mm
MATERIALS: Aluminum

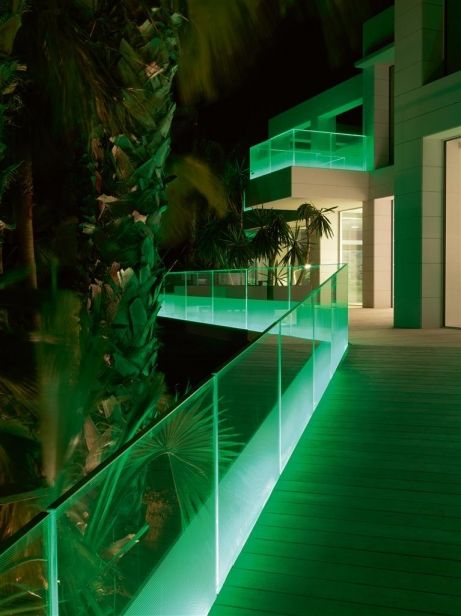

Light
Asymmetric modules
Colour temp: 3000K, 4000K
Symmetric modules
Colour temp: 4000K
Symmetric and Asymmetric modules
Colour temp: 2700K, 3000K, 4000K
FAQ
Use this text to share information about your product or shipping policies.
1. Is glass railing safe for outdoor use in Queensland’s climate?
Yes, our glass railing systems are engineered to withstand Queensland’s varied weather conditions — from strong sun exposure to coastal humidity. We use tempered or laminated safety glass combined with corrosion-resistant aluminium, ensuring long-term safety and performance outdoors.
Can the railing system be customized to suit different project styles?
Absolutely. We offer full customization on height, glass type, panel dimensions, and aluminium finishes to suit both residential and commercial projects across Queensland. Whether it’s for a beachfront villa or a multi-storey development, our solutions adapt to your architectural vision.
What kind of maintenance is required for long-term use?
Minimal maintenance is needed. Our systems are built with Queensland conditions in mind. Glass panels stay clear with routine cleaning, and powder-coated aluminium frames resist rust and fading — ideal for long-term use in coastal or urban environments.
