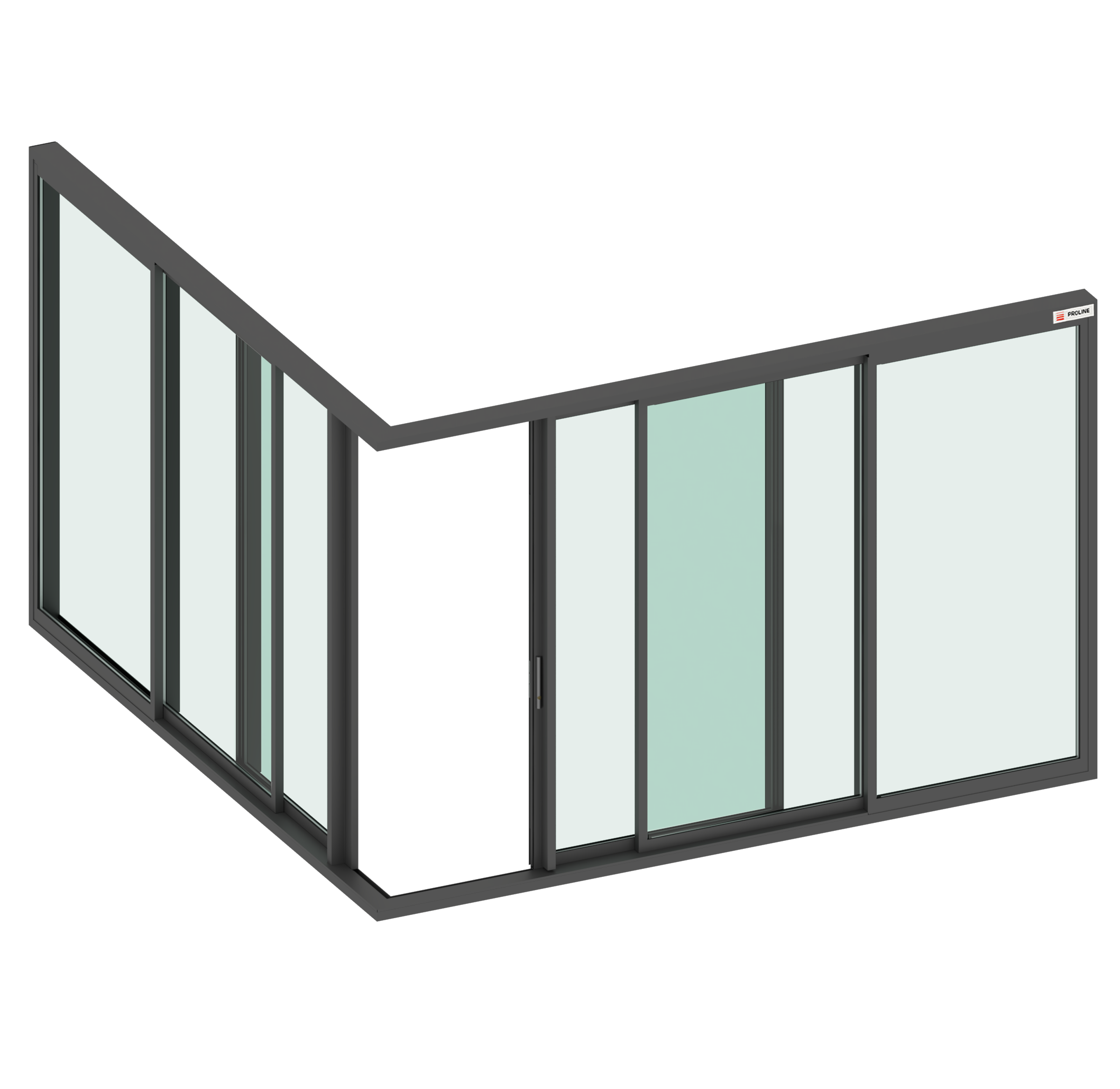

When planning a new extension with glazing on both sides, open corner sliding doors give you the benefits of a sliding patio door on each side, with the facility to fully open up the space with no visible corner post.
Specifications
Thermally broken aluminum Corner Sliding door with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤3000mm / Height ≤3000mm
2.2mm
38mm
≤300kg
720pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<7200pa
≥0.32 Btu/(hr x ft² x ºF)
Seamless Corner Opening
The post-free corner design allows two door panels to open completely, creating a wide and uninterrupted opening that enhances views and indoor–outdoor connection.
High Structural Performance
Engineered aluminium profiles provide excellent strength and stability, supporting large panel sizes while maintaining long-term durability for residential and commercial applications.
Architectural Design Flexibility
The system supports custom dimensions, glazing options, and finishes, allowing seamless integration into modern architectural and façade designs.
Frame Options
- Standard drainage sill stops bugs and air infiltration with self-closing weep holes and collects water underneath the visible sill surface, draining to the exterior to prevent water infiltration.
SD130

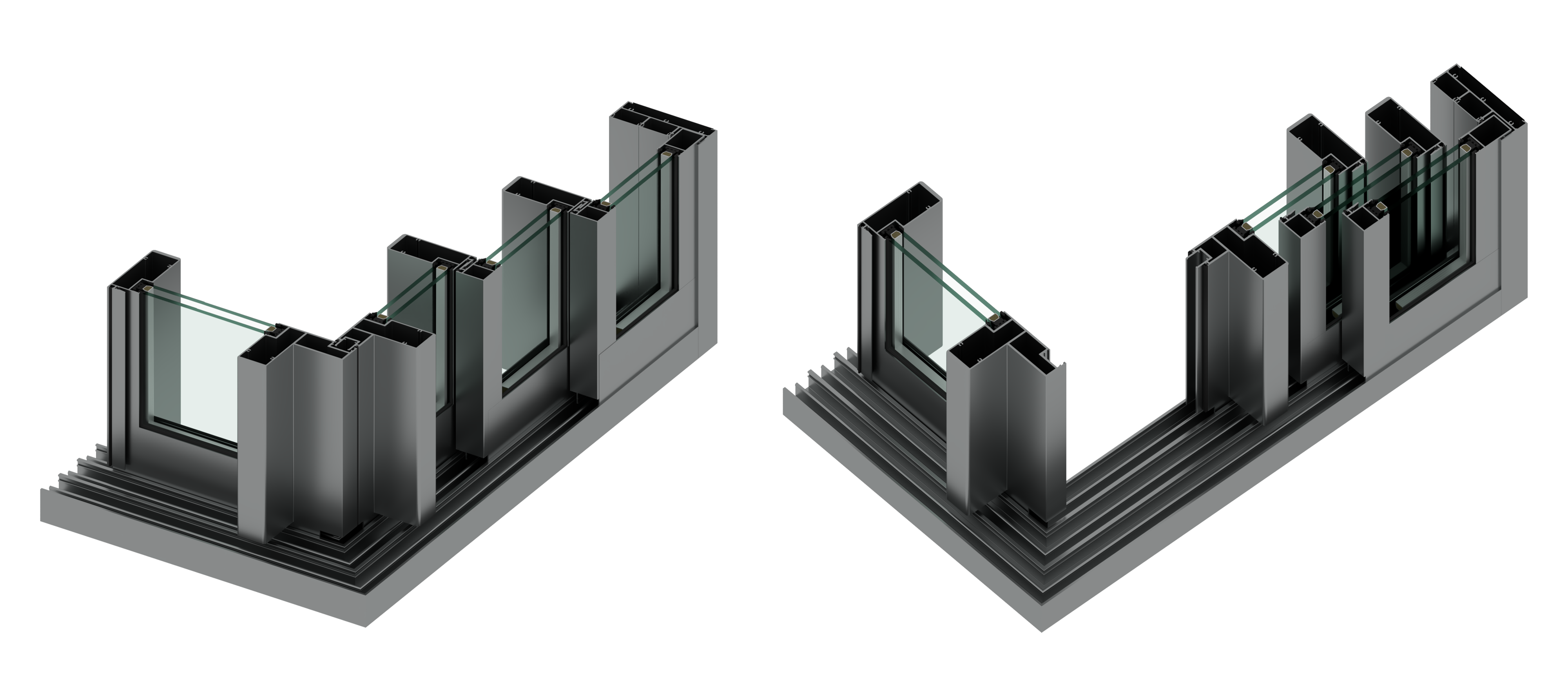

The aluminum corner door system features a precision-engineered corner detail with integrated rubber gaskets at the joint, providing effective buffering during operation and reducing impact, noise, and wear. The reinforced meeting stile (mullion profile) at the corner ensures structural stability and smooth panel alignment, even in large opening configurations. This design enhances durability, improves sealing performance, and delivers a refined architectural finish suitable for high-end residential and commercial projects.
Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low
Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.
Other Options
Screen Options
We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.
FAQ
Frequently asked questions about sliding doors, covering performance, safety, and usability.
Is the aluminum corner door system suitable for Australian conditions?
When properly specified and installed, the system performs reliably under Australian climate conditions, including high sun exposure and coastal environments.
What is the main advantage of a corner door system?
The post-free corner design creates a wide, uninterrupted opening, enhancing views and indoor–outdoor connection in modern architectural projects.
How is structural stability ensured at the corner joint?
Reinforced aluminium meeting stile profiles are used at the corner to maintain alignment, strength, and long-term stability, even with large door panels.
