Aluminum entry doors system offer a strong, secure, and weather-resistant solution with a sleek modern look. Their durability, low maintenance, and customizable finishes make them ideal for both residential and commercial projects.
Desription
Structural Strength: Engineered aluminum profiles ensure high load-bearing capacity and resistance to deformation.
Weather & Corrosion Resistance: Excellent durability against moisture, UV, salt spray, and harsh outdoor conditions.
Security & Safety: Multi-point locking, impact-resistant glazing, and fire-rated options enhance building protection.
Thermal & Acoustic Performance: Thermal break technology and insulation systems improve energy efficiency and soundproofing.
Design Versatility: Supports large door panels, slim sightlines, and multiple opening types, compatible with modern architectural styles.
Surface Finishes: Wide range of powder coating, anodizing, or wood-grain finishes for aesthetic flexibility.
Low Maintenance: Requires minimal upkeep while maintaining long-term stability and performance.
Detail
Available in a range of configurations, custom made and installed to your specification

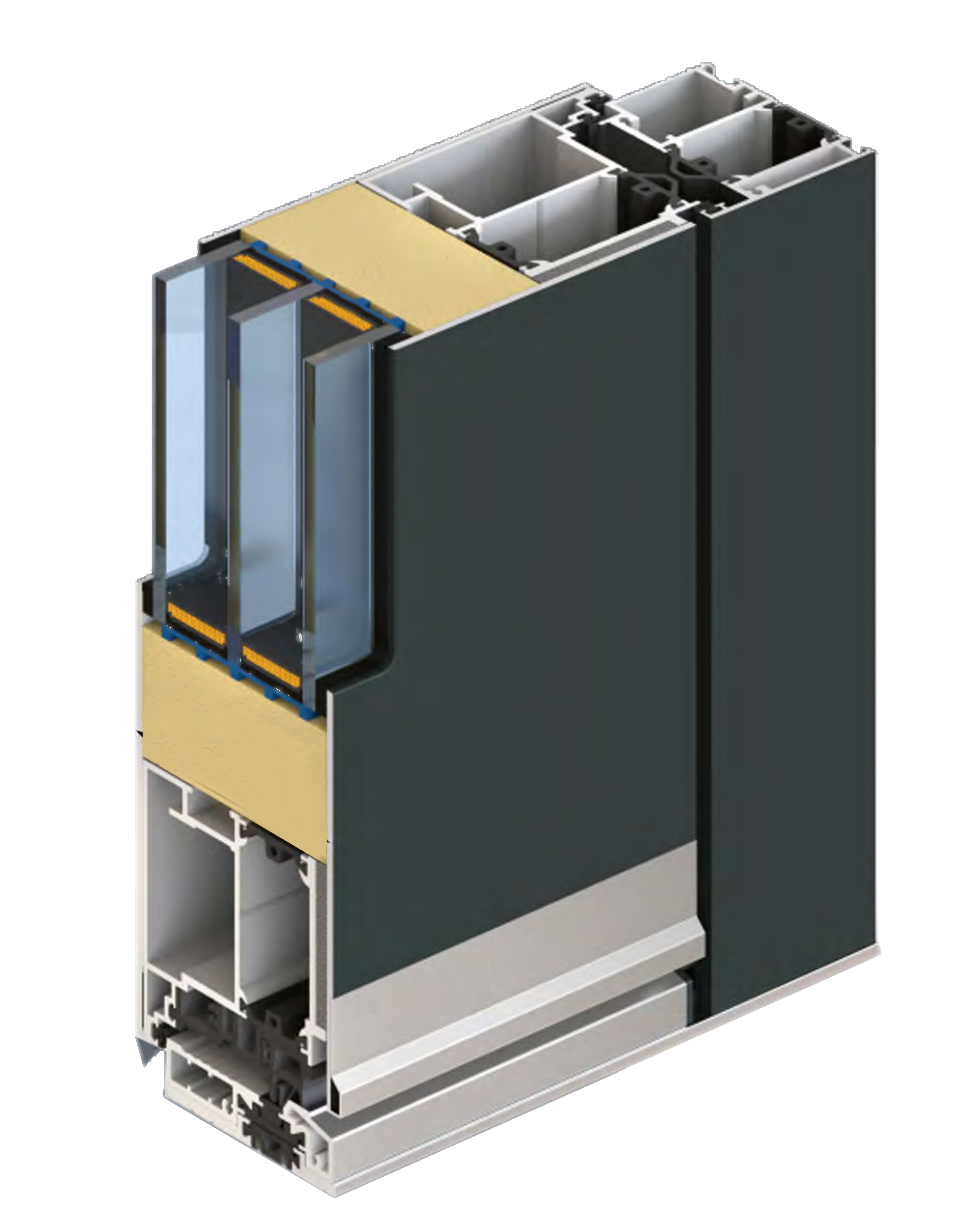

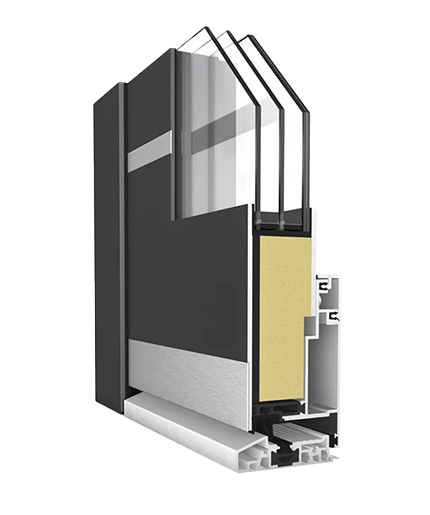

ED-104
Frame dept: 95 mm
Leaf depth: 95 mm
InfiII paneI thickness: 44 - 95 mm
Maximum dimensions ofthe Ieaf: (HxL) L up to 1400 mm1 H up to 2600 mm
Air permeability: CIass 31 PN-EN 12207:2001
Water tightness: CIass E1200 (1200 Pa)1 PN-EN 12208:2001
Wind Ioad resistance: CIass C4/B41 PN-EN 12210:2001
Thermal insulation: UD from 0.44 W/m2 K
BurgIary-resistance: RC2

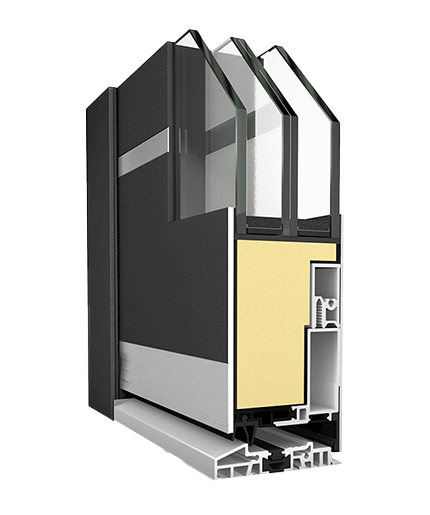

ED-86
Frame dept: 77 mm
Leaf depth: 77 mm
InfiII paneI thickness: 44 - 77 mm
Maximum dimensions ofthe Ieaf: (HxL) L up to 1400 mm1 H up to 2600 mm
Air permeability: CIass 31 PN-EN 12207:2001
Water tightness: CIass E1200 (1200 Pa)1 PN-EN 12208:2001
Wind Ioad resistance: CIass C5/B51 PN-EN 12210:2001
Thermal insulation: UD from 0.66 W/m2 K
BurgIary-resistance: RC2

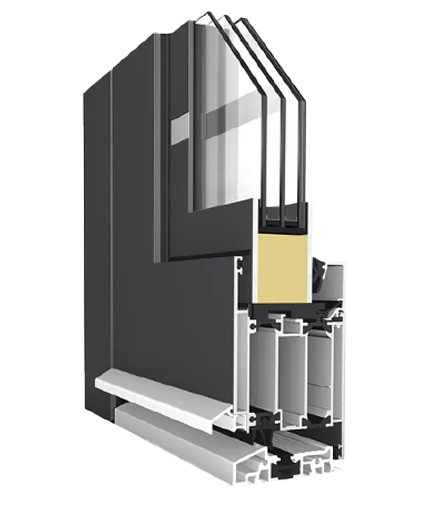

ED-70
Frame dept: 70 mm
Leaf depth: 70 mm
InfiII paneI thickness: 44 - 70 mm
Maximum dimensions ofthe Ieaf: (HxL) L up to 1200 mm1 H up to 2400 mm
Air permeability: CIass 31 PN-EN 12207:2001
Water tightness: CIass E1200 (300 Pa)1 PN-EN 12208:2001
Wind Ioad resistance: CIass C5/B5 PN-EN 12210:2001
Thermal insulation: UD from 0.9 W/m2 K
BurgIary-resistance: RC2
Options

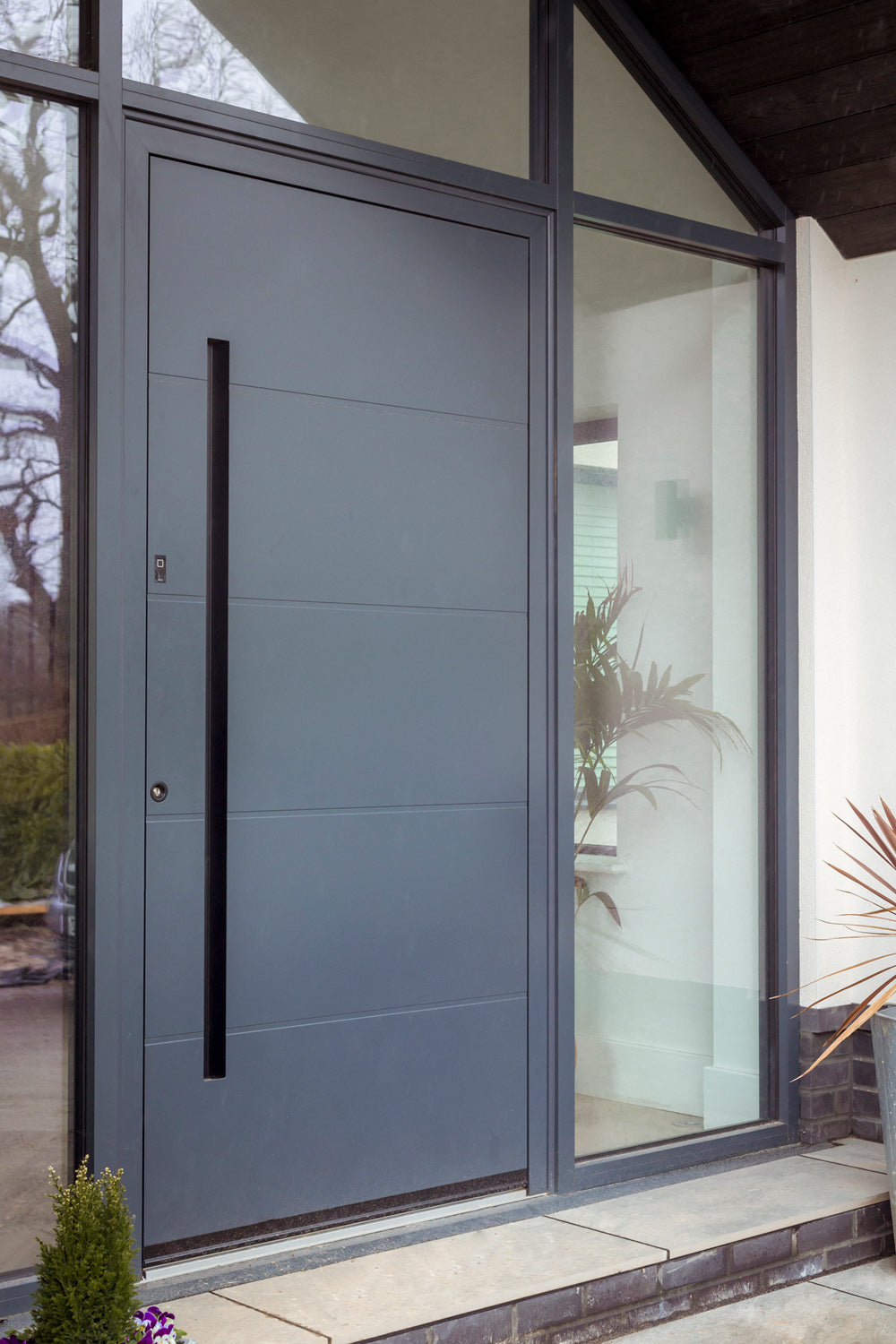

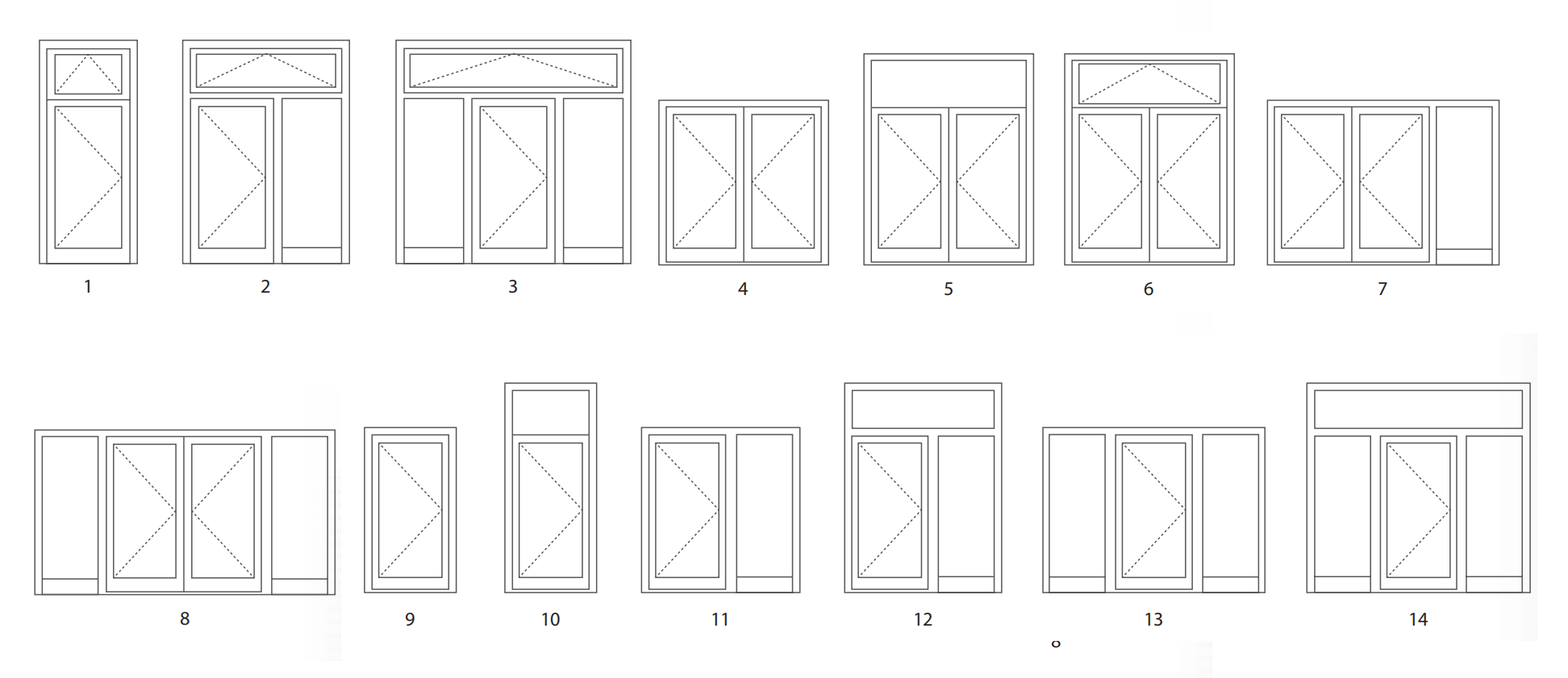

Configurations
Our entry doors are available in a wide range of panel configurations to suit diverse architectural styles and functional needs. Options include single doors, double doors, combinations with sidelights, transom windows, and multi-panel arrangements. Each design is carefully engineered to ensure durability and security while offering flexibility in lighting, ventilation, and aesthetics.
Glass
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.
Thresholds
The threshold is an essential part of an entry door system, positioned at the bottom of the frame. It provides sealing, waterproofing, wind resistance, and sound insulation. Beyond preventing water and air infiltration, it enhances energy efficiency and comfort. Designed with durable materials, thresholds ensure both strength and aesthetics while meeting accessibility requirements.

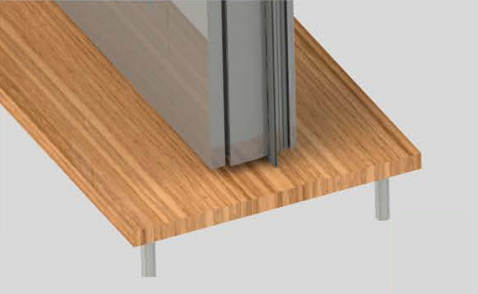

No Threshold

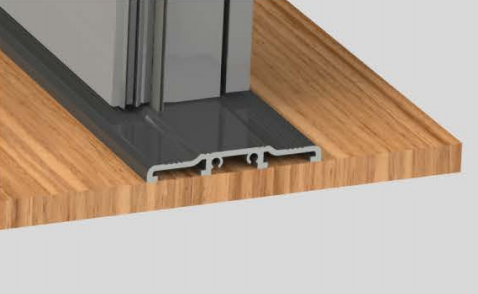

Surface Threshold

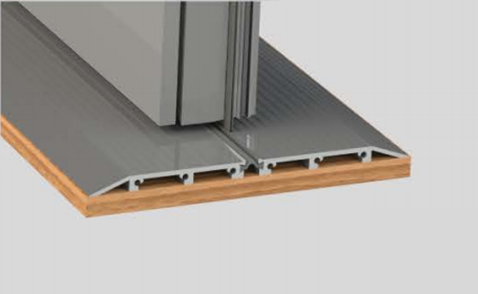

ADA Threshold

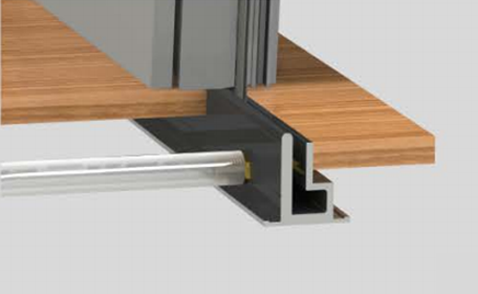

ADA Recessed Drainage Track

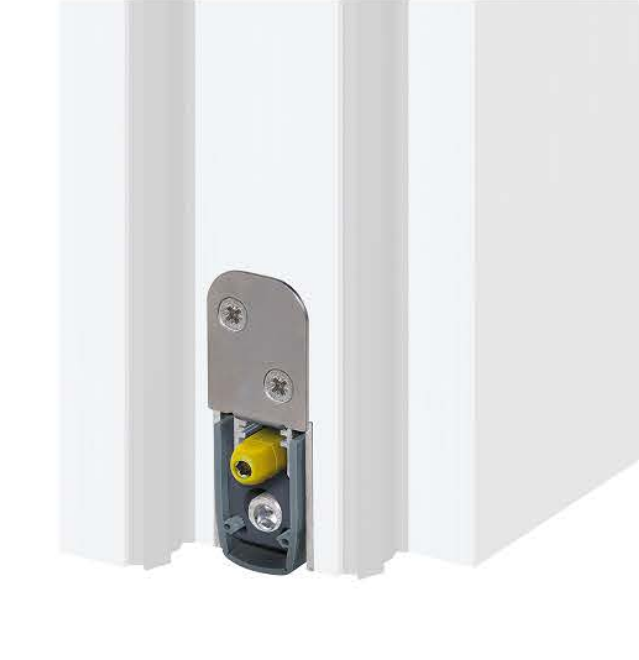

Drop Seal
A drop seal is a concealed, spring-loaded mechanism installed at the bottom of a door to create anairtight seal when the door is closed, Designed to improve energyeffciency, soundproofng, andweather resistance, it automatically lowers to block drafts, noise, smoke, and even light gaps. ldeal forboth residential and commercial applications, drop seals enhance comfort and compliance withbuilding standards without compromising the door's functionalityor aesthetics.

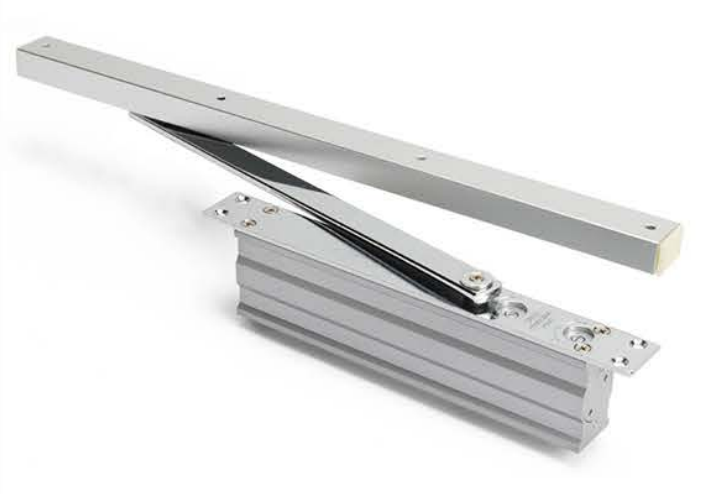

Concealed Header Closer
Completelyhidden within the doorthis closer provides gentle, controlledclosure, protecting your doors andproviding peace of mind. lts durablealuminum construction andcustomizable settings ensure optimaperformance in a variety ofapplications

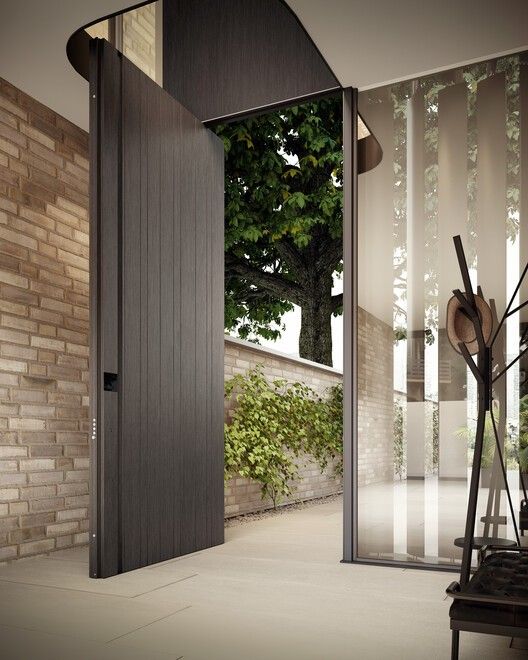

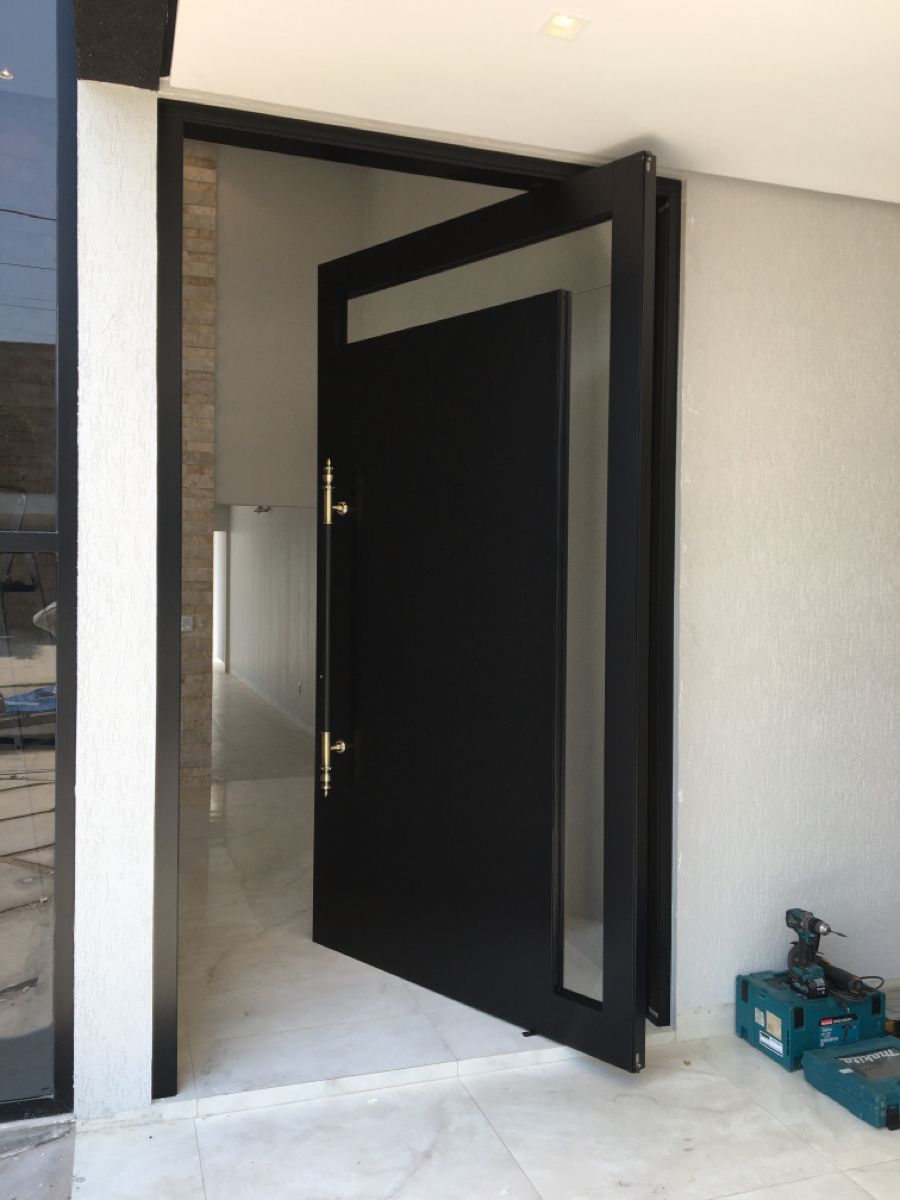

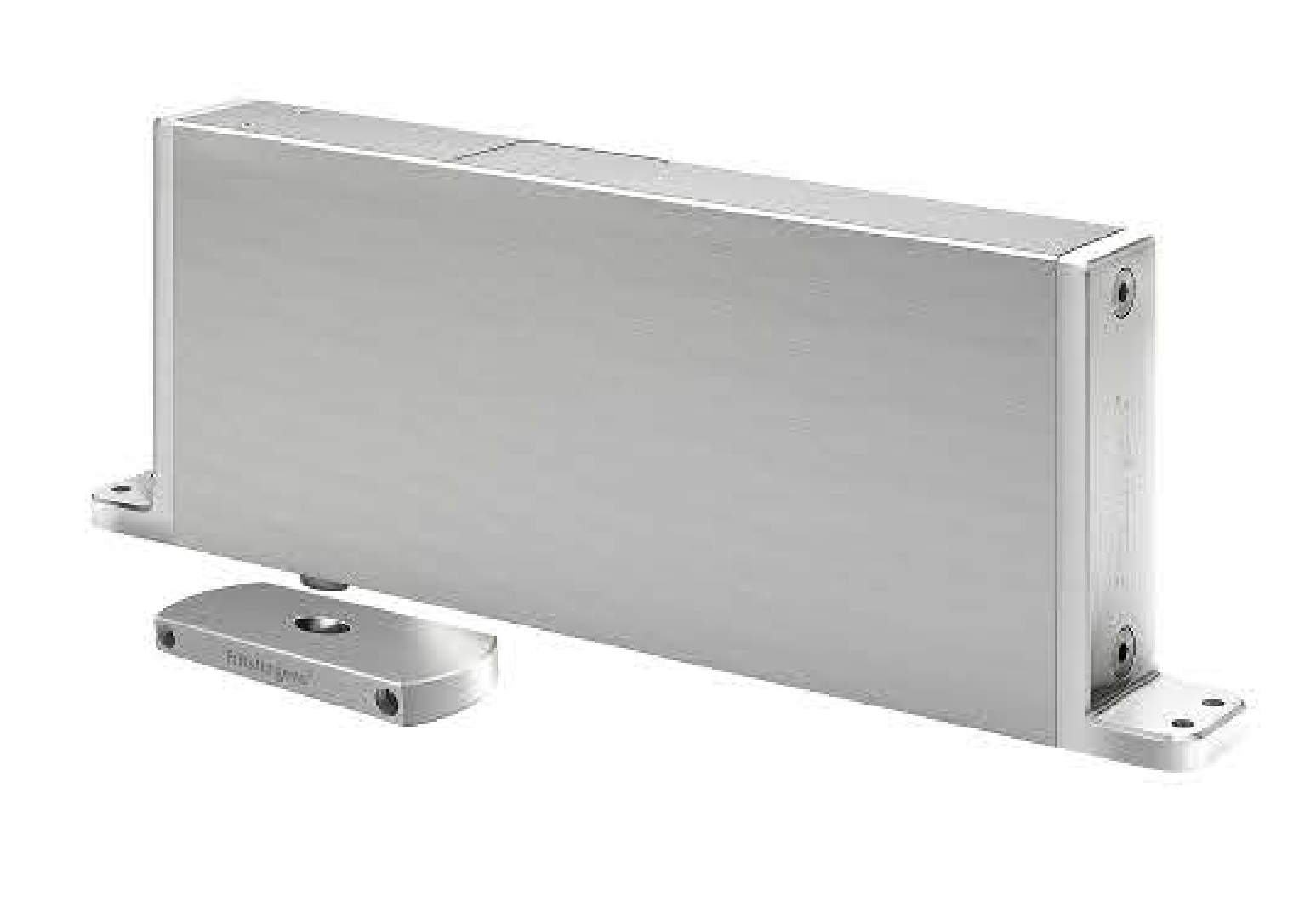

Pivot Closer
This advanced hardware ensuresprecise control and elegance forpivot doors.Adjustable soft-close.hydraulic backcheck, and self-closing with hold-open optionsenhancefunctionality
An optional upgradeis available thatoffers enhanced control over doormovement and is designed forlarger,heavier doors
