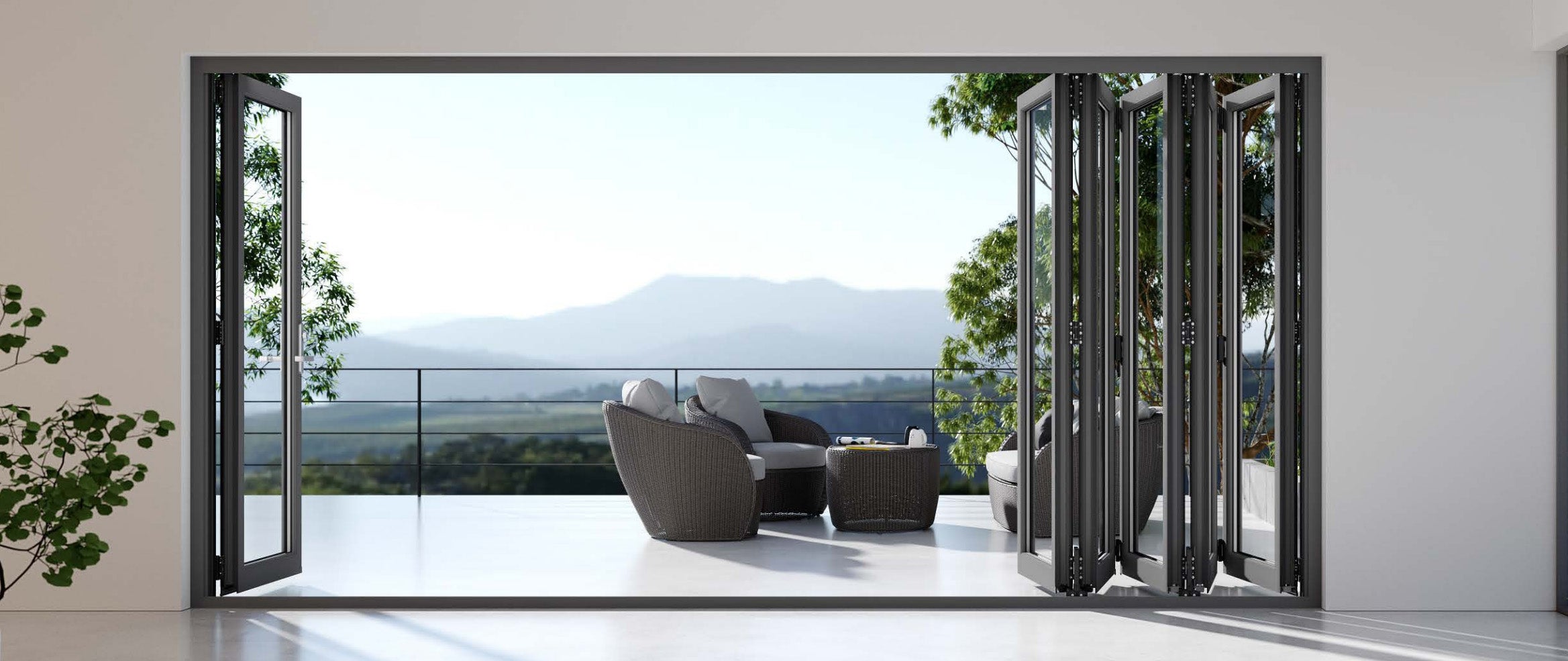

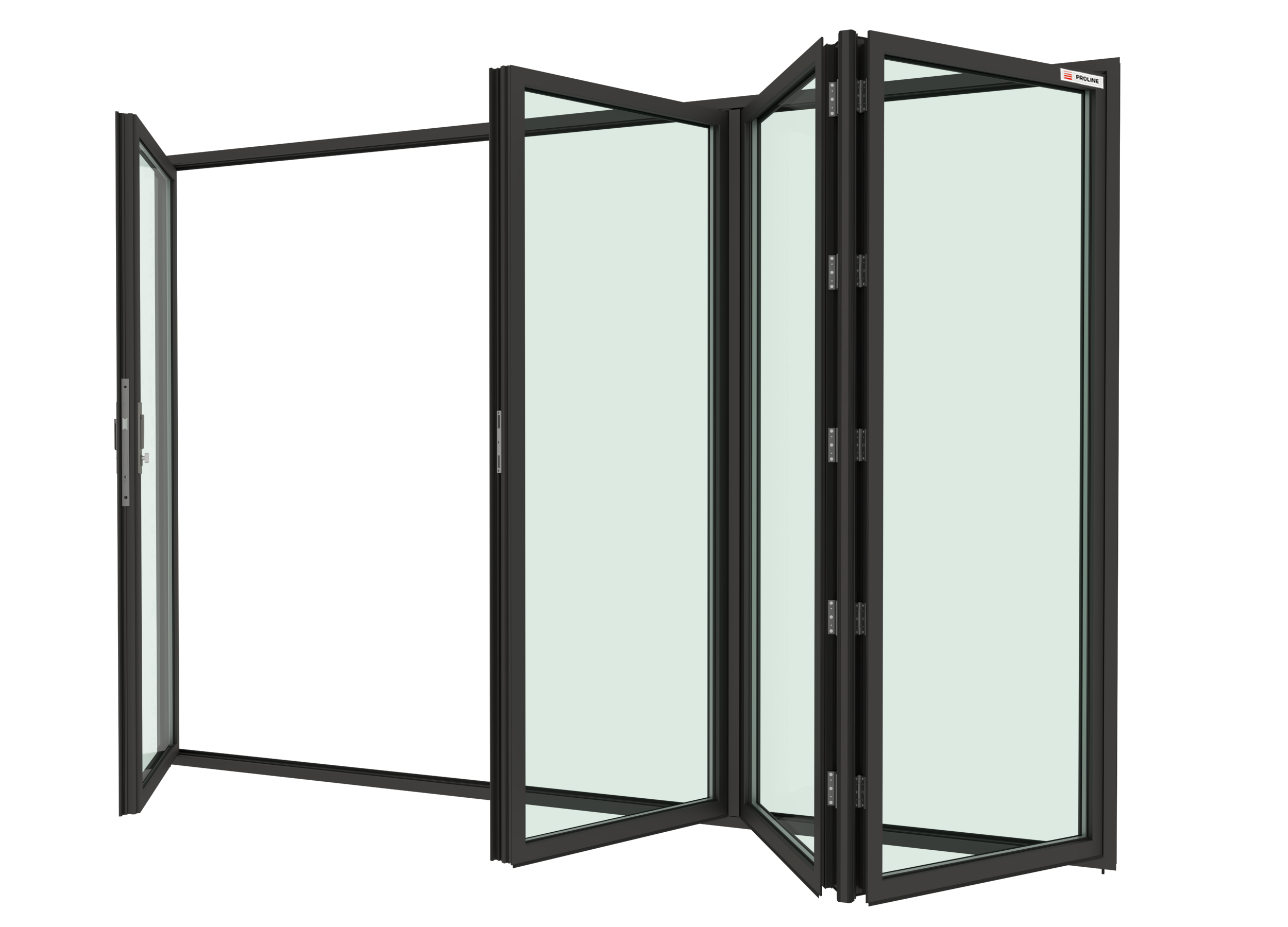

The folding door system provides versatility, folding completely to connect indoor and outdoor areas. Ideal for open-concept spaces in homes and cafes, it maximizes light and space. Durable and energy-efficient, it adds aesthetic appeal to any project.
Specifications
Thermally broken aluminum Folding door with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤1200mm / Height ≤2800mm
2.0mm
32mm
≤90kg
720pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<4900pa
≥0.28 Btu/(hr x ft² x ºF)
Durability And Long-Lasting Performance
50,000 repeat times without damage.
Flexible Opening Options
Supports outward and inward folding-sliding configurations with various combinations.
Safety Anti-Pinch Design
Anti-pinch design at frame-sash joints reduce the risk of hand injuries.

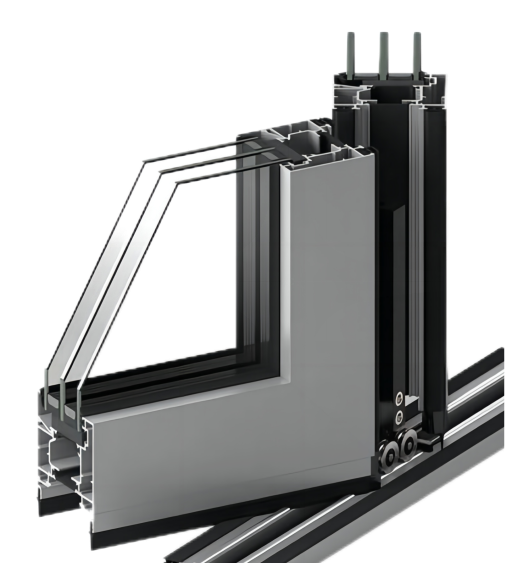

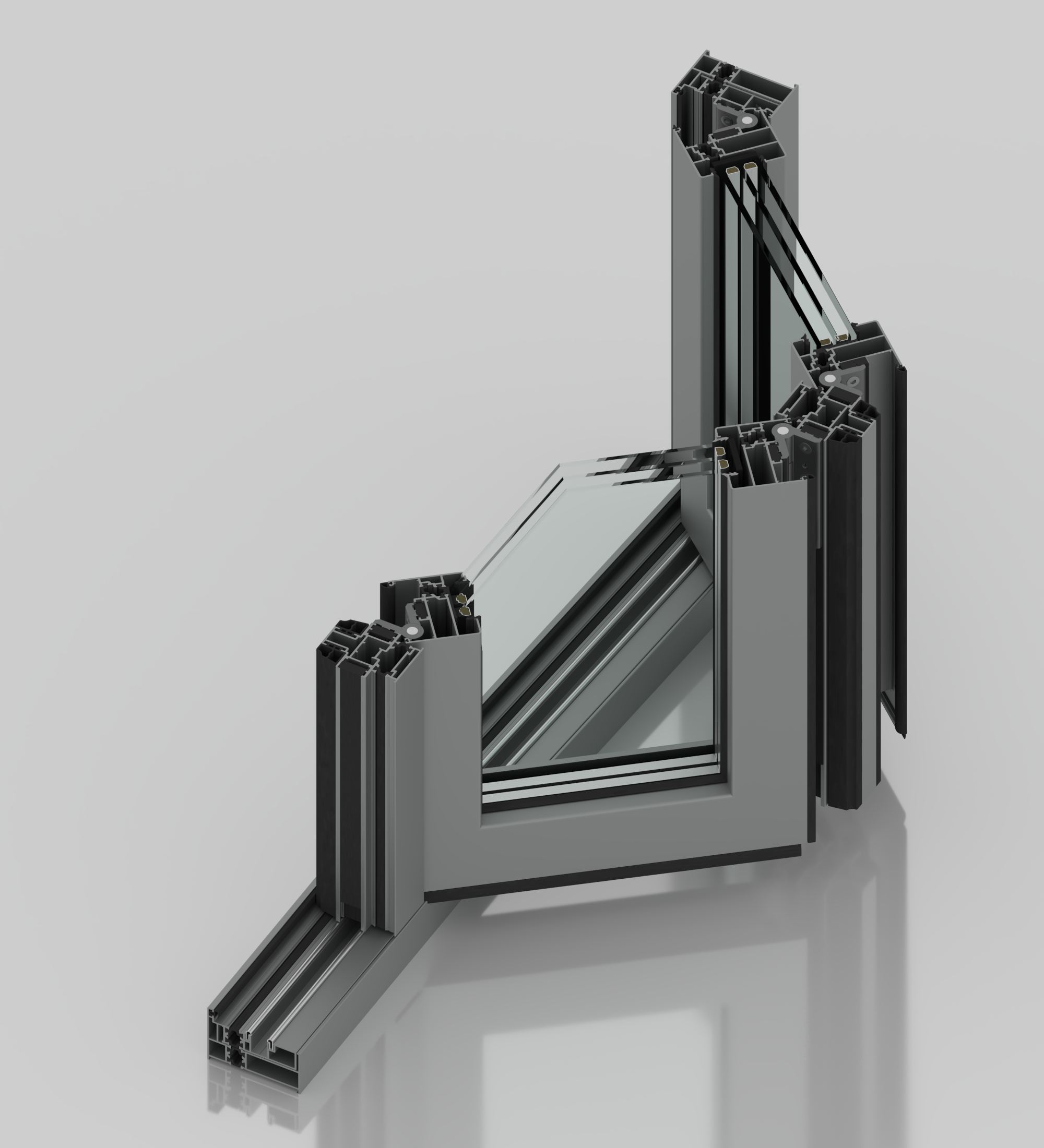

Frame Options
The folding door is constructed with reinforced aluminium profiles, designed to carry multiple sashes connected by heavy-duty hinges.
FD130
The frame system allows smooth folding and stacking, making it suitable for wide openings and flexible indoor-outdoor transitions.
Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low
Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.
FAQ
Frequently asked questions about folding doors, covering performance, safety, and usability.
What types of projects are folding doors best suited for?
Folding doors are ideal for houses, large townhouses, and upscale residential developments where maximizing indoor-outdoor flow and creating spacious living areas are priorities.
How do folding doors perform in terms of weather resistance and security?
High-quality folding doors incorporate multi-point locking systems and robust seals to ensure excellent airtightness and water resistance. Their strong frames provide enhanced security suitable for both residential and commercial use.
Can folding doors be customized to fit different architectural styles and energy standards?
Yes. Folding doors are available in various finishes, sizes, and glazing options, including thermal breaks and low-E glass, allowing full customization to meet architectural aesthetics and energy efficiency requirements.
