01 Durability And Long-Lasting Performance
200,000 repeat times without damage.
02 More Openable Options
The same hardware system and structural platform support various openable options, single sash, double sash, open outward and open inward.
03 More Security
Mushroom-head locking points, multi-point locking fitting and secure hardware system for anti-mishandle engineering and anti-prying performance.
Technical Data

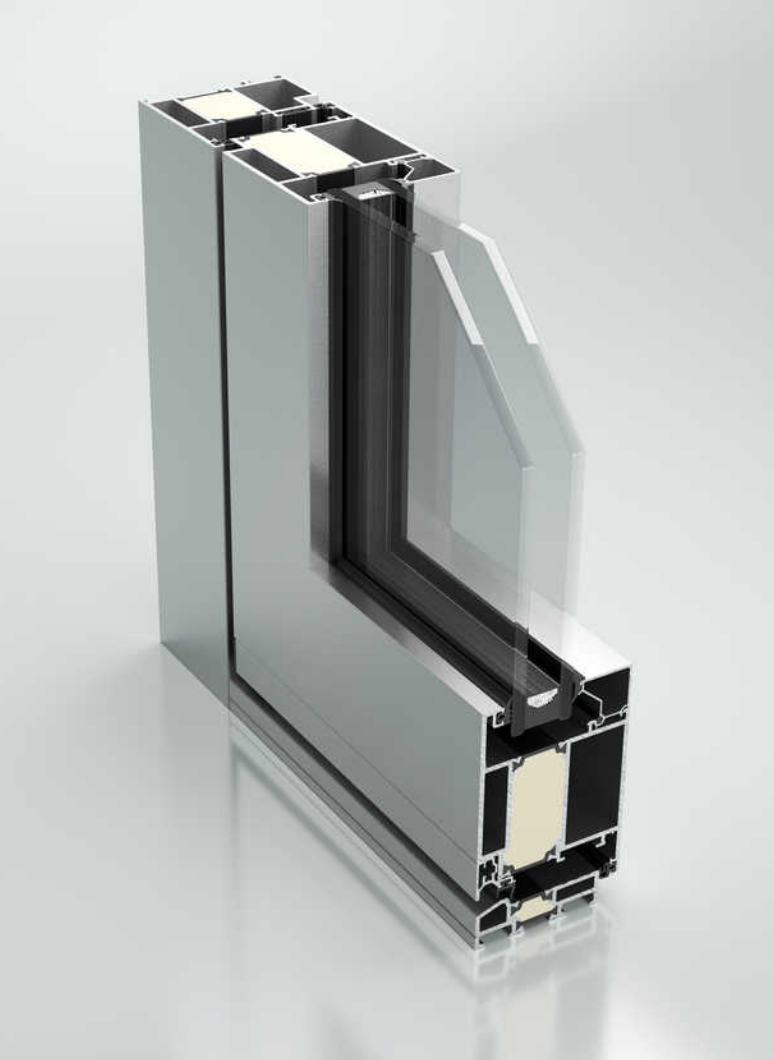

Thermally broken aluminum casement window with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤1000mm / Height ≤2500mm
2.2mm
48mm
≤120kg
720pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<7200pa
≥0.26 Btu/(hr x ft² x ºF)

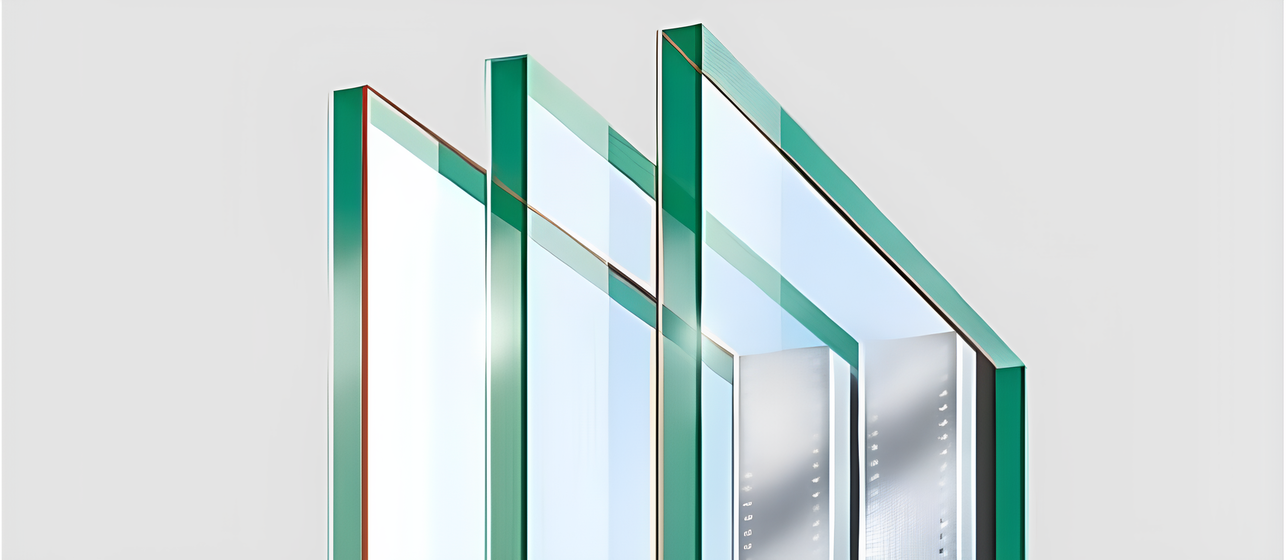

Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

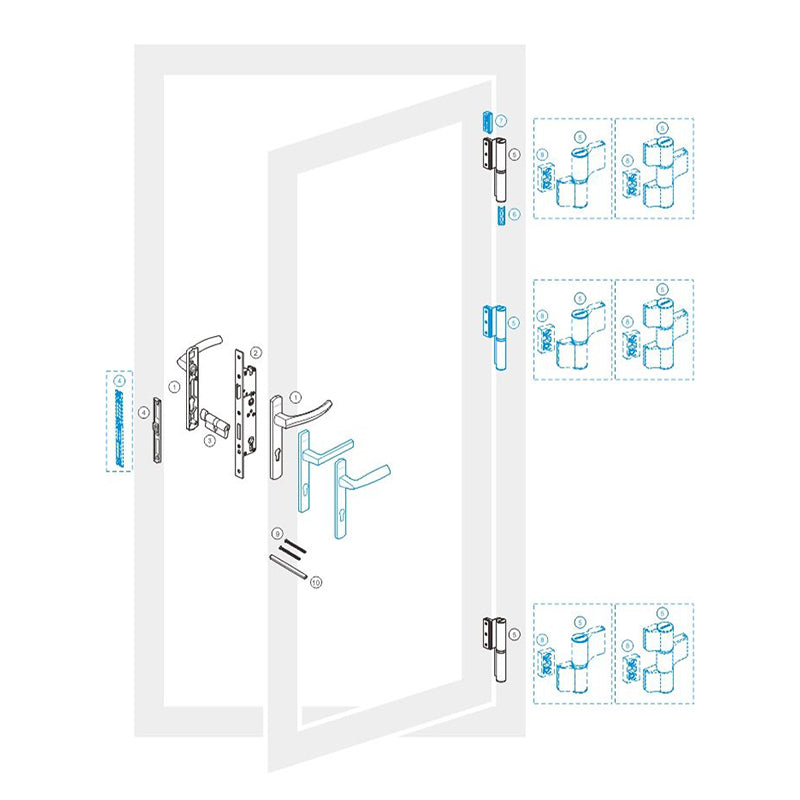

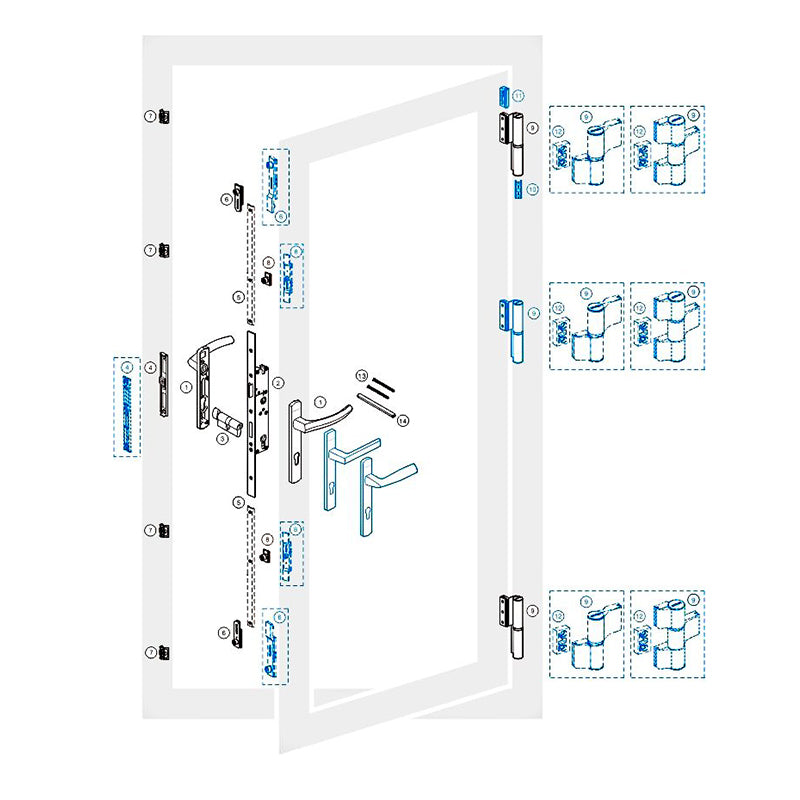

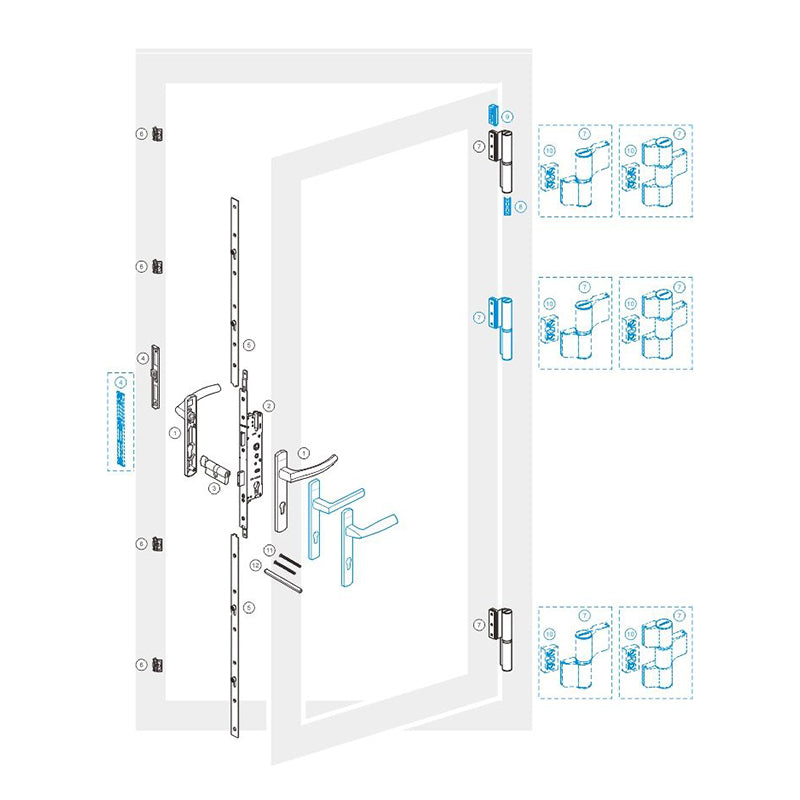

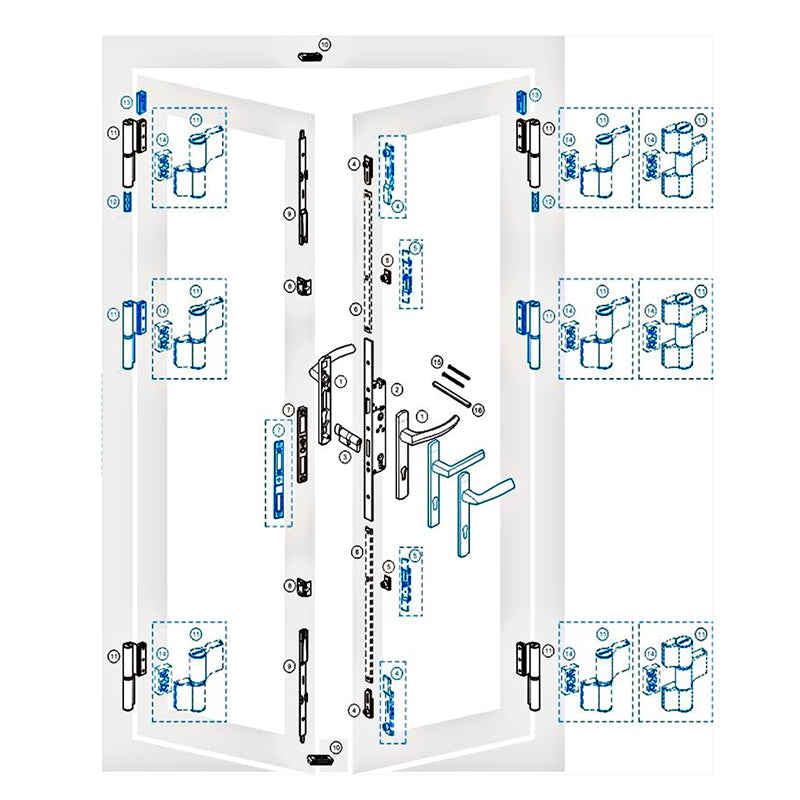

Hardware System
Our hardware system ensures smooth operation, long-lasting durability, and a high level of security, perfectly matching the overall performance of the window and door system.
