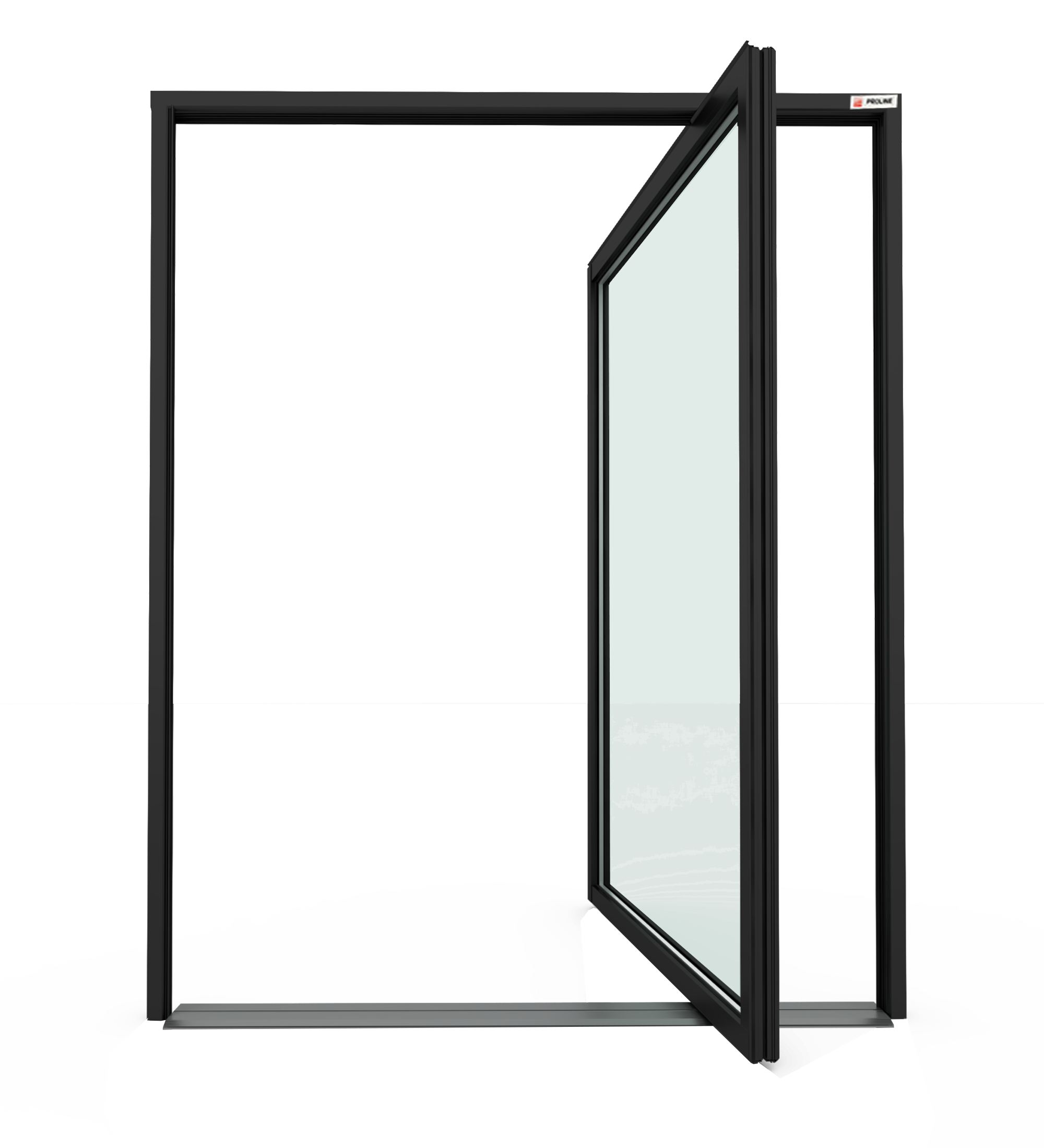

Engineered and rigorously tested under adverse environmental conditions, the system delivers outstanding durability, stability, and operational smoothness. Its advanced pivot mechanism supports extra-large door panels, accommodating single-leaf weights of up to 600 kg, making it ideal for high-end residential, commercial, and landmark architectural projects.
Specifications
Thermally broken aluminum pivot door with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤2500mm / Height ≤3500mm
2.2mm
38mm
≤600kg
720pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<7200pa
Automation Ready
Optional motorisation, compatible with home automation systems.
Hidden Security
Optional concealed alarm contacts for enhanced security.
Water Drainage
Optional rainwater evacuation via a stainless-steel channel integrated into the frame.
Frame Options
- Standard drainage sill stops bugs and air infiltration with self-closing weep holes and collects water underneath the visible sill surface, draining to the exterior to prevent water infiltration.

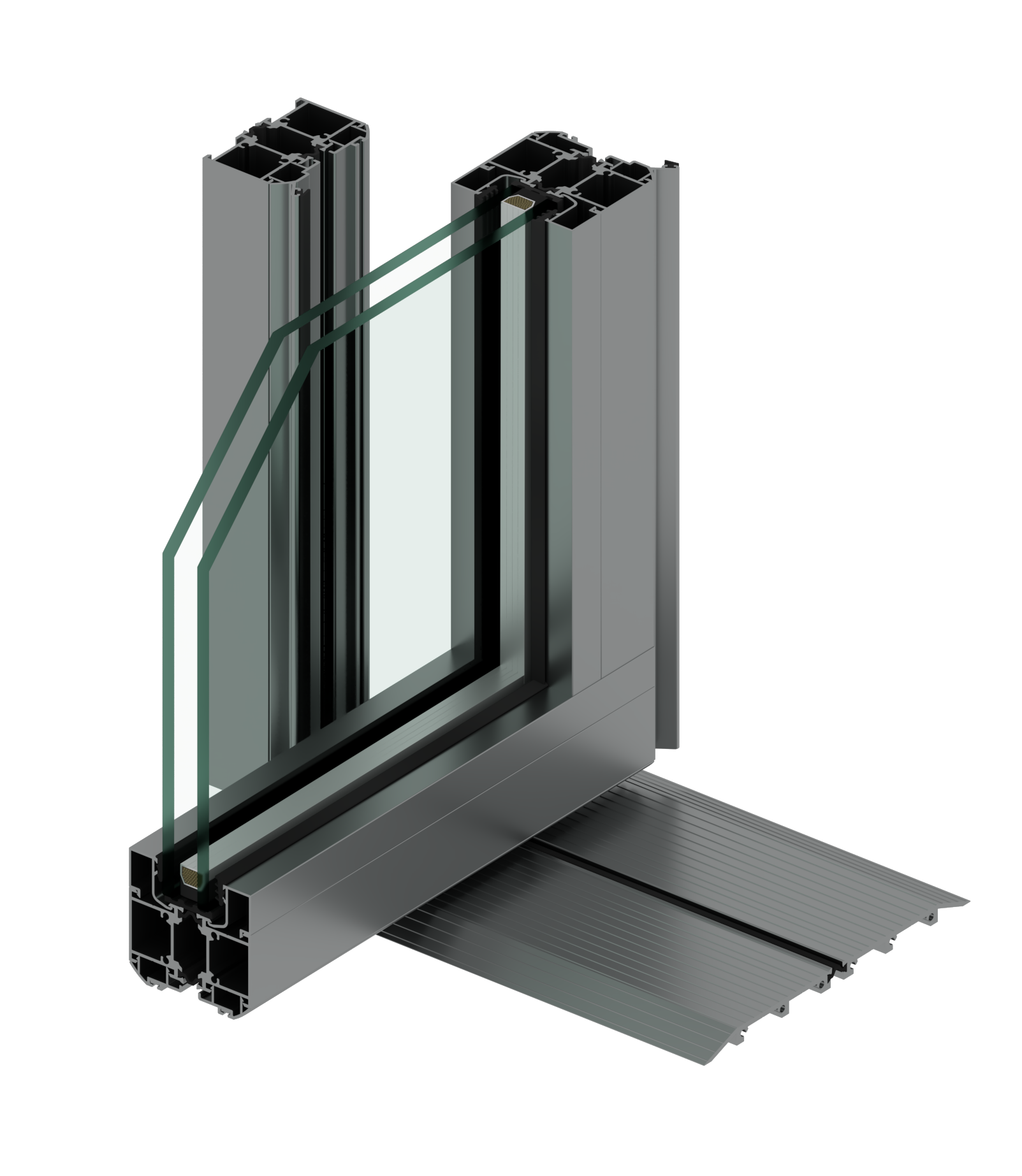

PD90
Reinforced aluminium profiles designed for oversized pivot doors, supporting large panels and high loads.
Aluminum frames come in various colors and finishes, seamlessly matching any design. Powder-coated and anodized surfaces ensure lasting aesthetics and low
Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.
Details

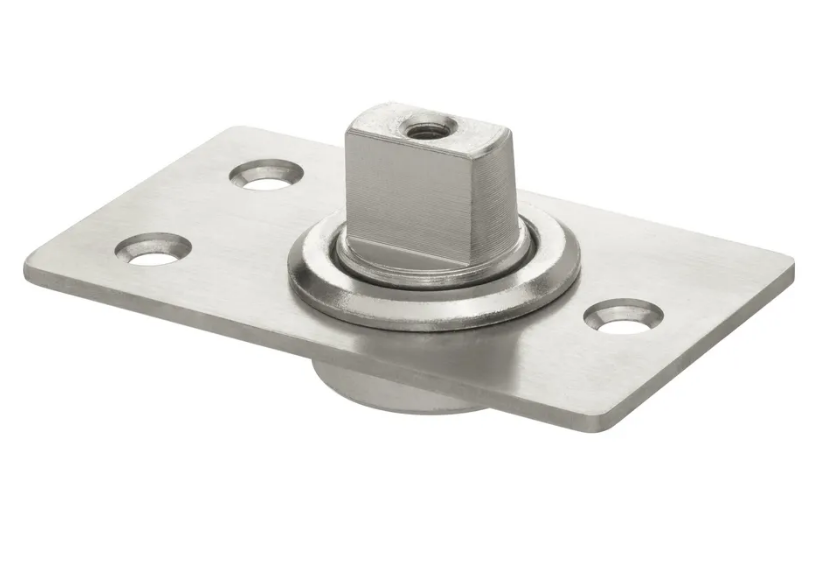

loor Mount Pivot
This pivot provides a 600KG weight capacity to support heavier glass doors commonly used with bottom Door Rails and Patch Fittings.
- Base Material: Stainless steel
- Maximum Door Clearance: 7/16"
- Minimum Door Clearance: 7/16"
FAQ
Frequently asked questions about sliding doors, covering performance, safety, and usability.
What is the maximum door size and weight?
The system supports oversized pivot doors, with single-leaf weights up to 600 kg.
Is the system suitable for Australian climate conditions?
Yes. It is engineered and tested for Australian conditions, including wind loads, temperature changes, and heavy rainfall.
Can the pivot door be automated?
Yes. Optional motorisation is available and compatible with home automation and access control systems.
