01 Heavy Duty Hardware Engineering
The operable sash weight up to 100 kg.
02 Frame-Sash Same Horizon
The frame-sash in the same horizon design delivers a clean appearance, more suitable for contemporary architecture.
03 PHI Certified Passive Window
The thermal insulation coefficient meets the standards for passive house windows.
Technical Data

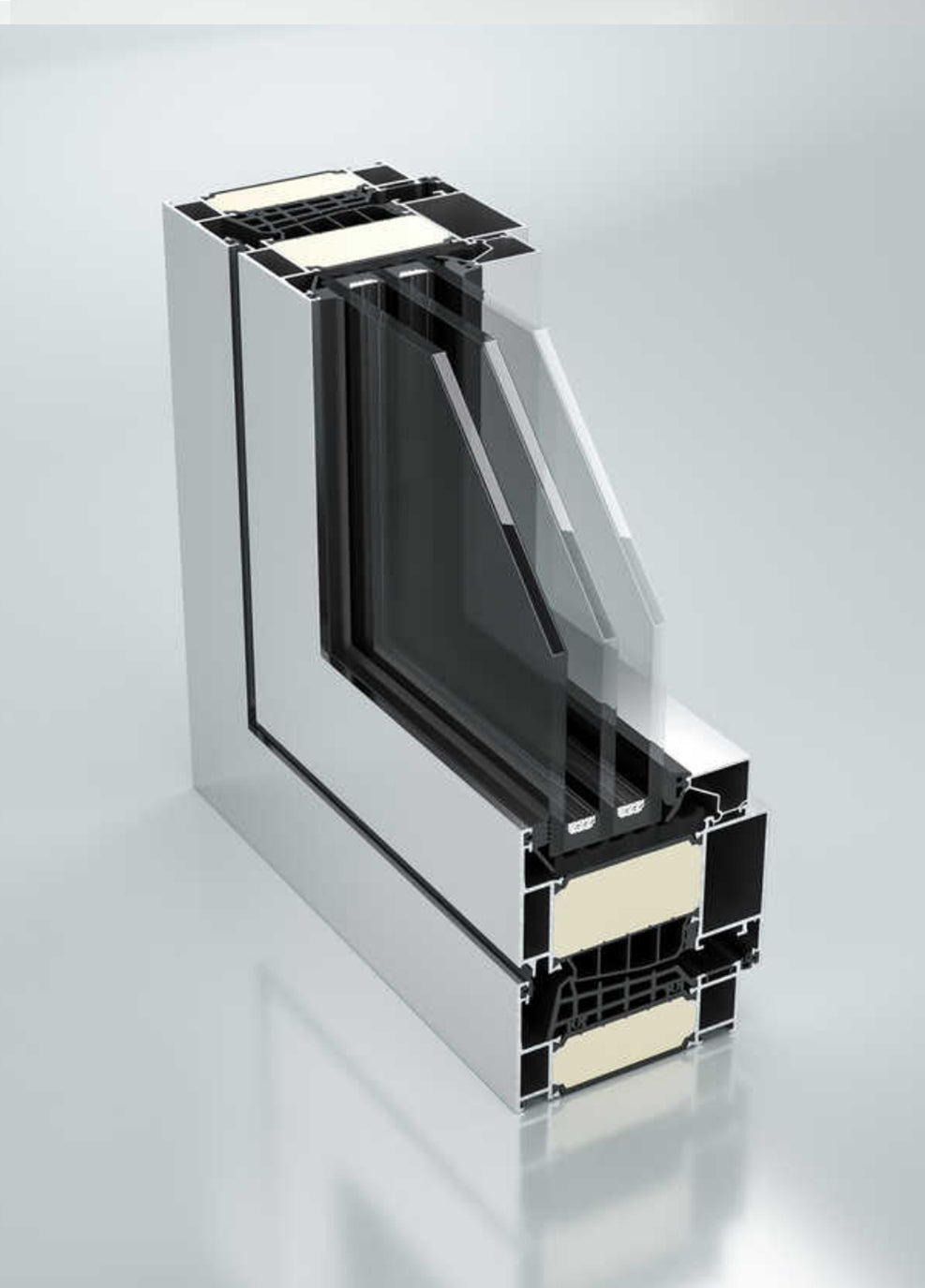

Thermally broken aluminum casement window with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤1200mm / Height ≤2100mm
1.8mm
77mm
≤100kg
720pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<7200pa
≥0.18 Btu/(hr x ft² x ºF)
Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.
Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

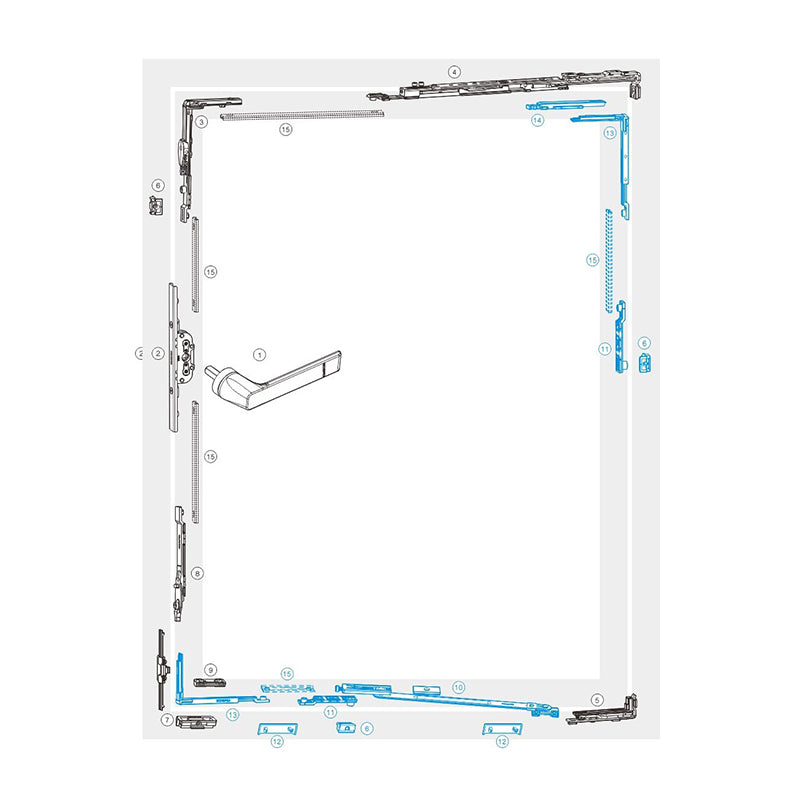

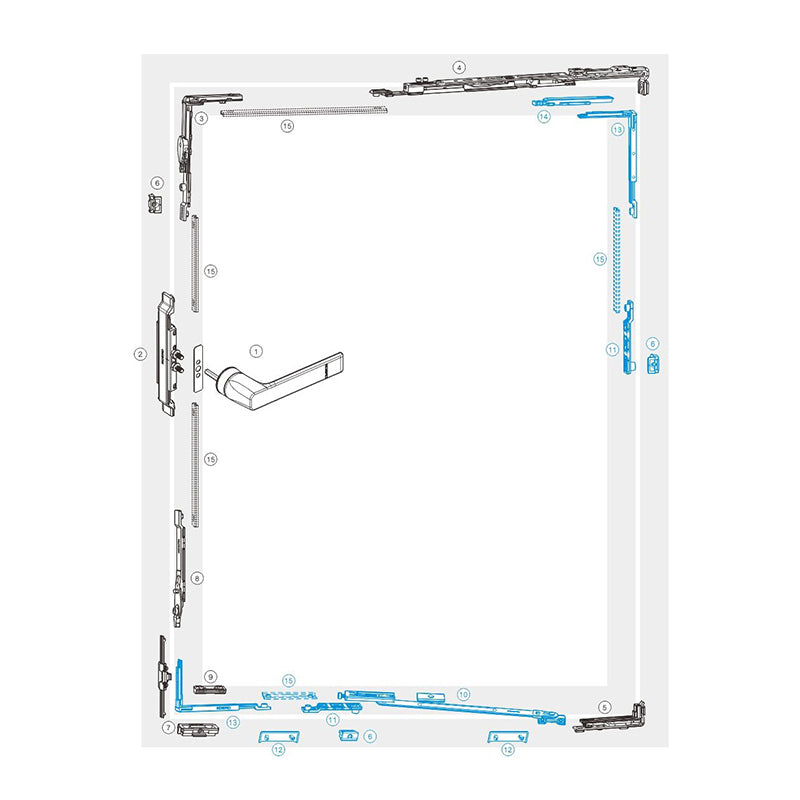

Hardware System
Our hardware system ensures smooth operation, long-lasting durability, and a high level of security, perfectly matching the overall performance of the window and door system.
Screen Options
We offer a wide range of insect screen solutions including vertical roller, horizontal sliding, pleated, and framed types—each tailored to suit different spaces and usage needs. Whether for bedroom or kitchen windows, or large balcony and patio doorways, our screens provide both functionality and aesthetic appeal.
FAQ
Frequently asked questions about tilt-turn windows, covering performance, safety, and usability.
What makes tilt-turn windows different from standard casement or sliding windows?
Tilt-turn windows offer two opening modes: tilting the top of the sash inward for secure ventilation, and turning the sash fully inward for easy cleaning and emergency egress. This dual-function design improves safety, ventilation control, and maintenance convenience.
Are tilt-turn windows suitable for high-rise and large window applications?
Yes. Tilt-turn windows use reinforced frames and multi-point locking systems to ensure structural stability and high security, even for large window sizes. Their inward opening design is ideal for high-rise buildings, enhancing safety while providing flexible ventilation options.
How do tilt-turn windows improve energy efficiency and indoor comfort?
The tight compression seals and thermal break profiles used in tilt-turn windows deliver excellent airtightness and insulation. The tilt ventilation mode allows fresh air intake without significant heat loss, maintaining comfortable indoor temperatures and reducing energy costs.
