01 Sealing
Proline has designed a sealing device for the upper and lower dead corners of conventional edging, enhancing sliding window sealing capability and overall product performance.
02 Comfort
Special Sliding Components: Smooth, durable stainless steel rails facilitate easy operation, while the sliding window's special pulley kit enhances lifespan and wear resistance, ensuring a vibration-free sliding experience.
03 Upgrading
Strong Compatibility: Compatible with frameless SsW sliding windows and offers options for stainless steel high-permeability screens to effectively block mosquitoes.
Technical Data

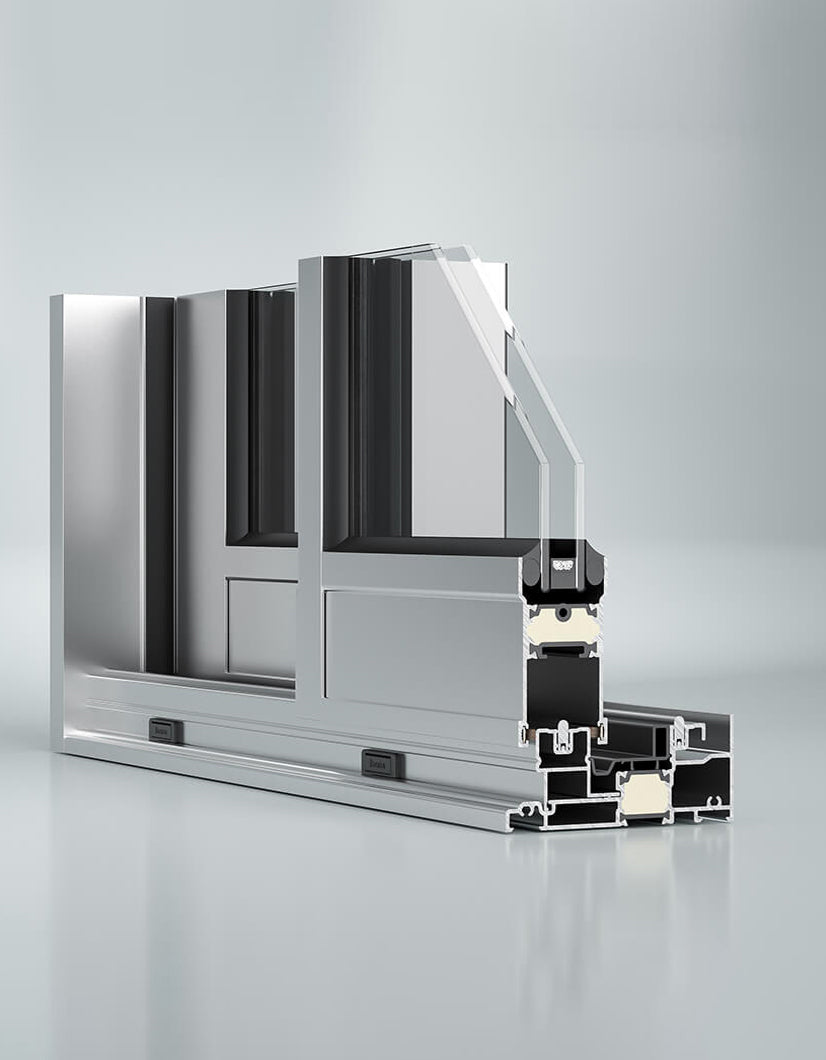

Thermally broken aluminum window system with double glazing and multi-layer sealing, providing excellent thermal insulation, airtightness, water resistance, and durability for residential and commercial use.
Width ≤2000mm / Height ≤2000mm
1.8mm
32mm
≤160kg
250pa
Positive pressure Up to Level 8 / Negative pressure Up to Level 8
<5600pa
≥0.37 Btu/(hr x ft² x ºF)
Glass Options
We provide various glazing options to suit different project needs, balancing performance, aesthetics, and budget.
Double Glazing
Double glazing can withstand greater wind pressure in high-rise apartment buildings, ensuring safety and stability while effectively reducing external noise for a quiet living environment.

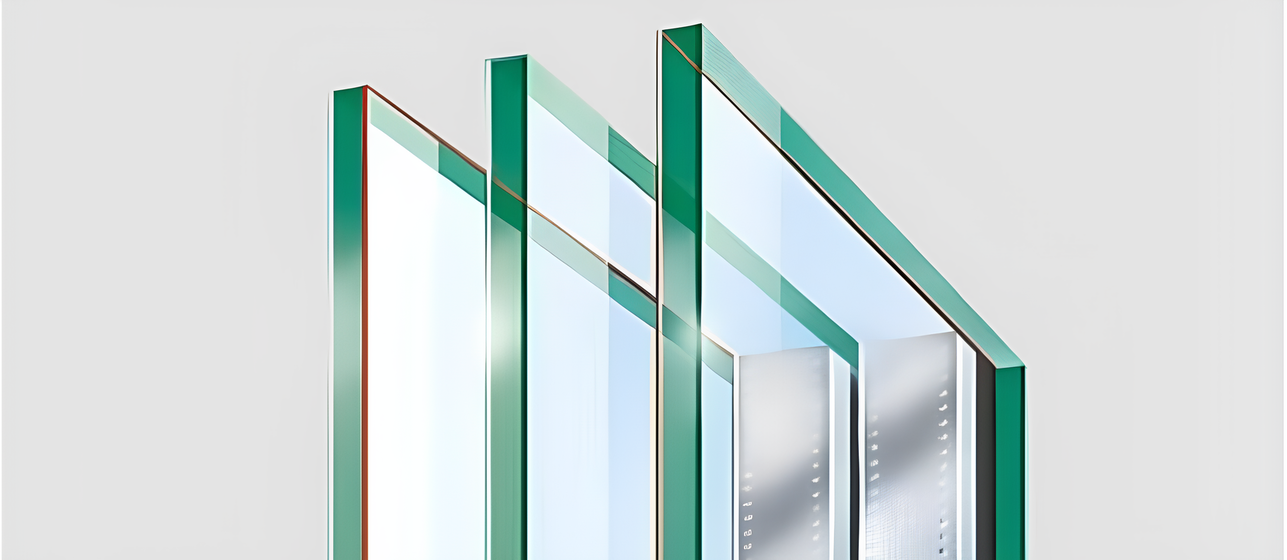

Triple Glazing
Triple glazing is widely used in buildings located in cold or noisy environments. Compared to double glazing, it offers better insulation, energy efficiency, and soundproofing. It helps reduce heating and cooling costs and creates a quieter, more comfortable indoor space.

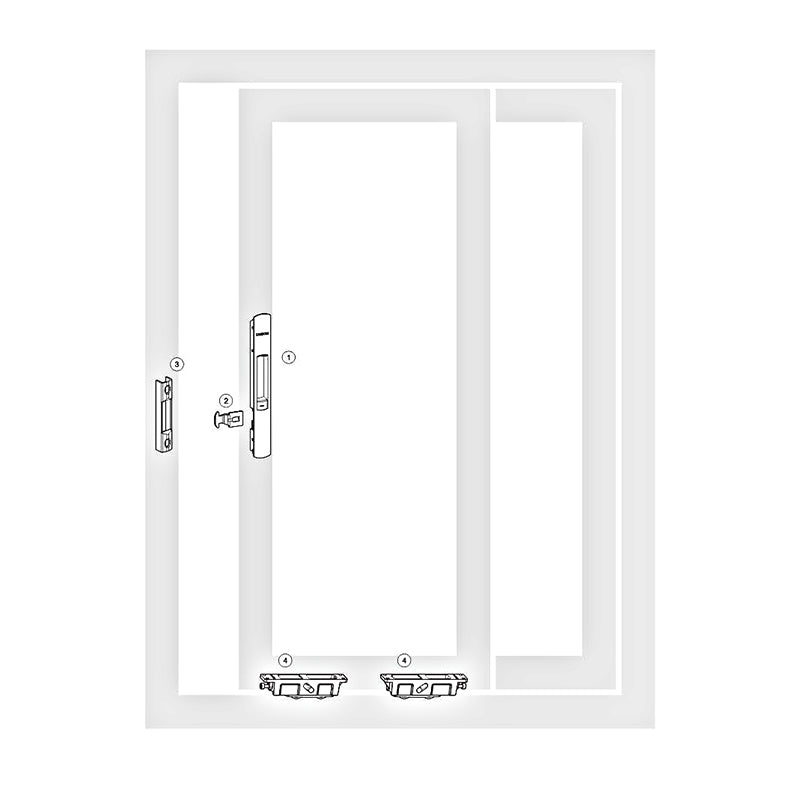

Hardware System
Our hardware system ensures smooth operation, long-lasting durability, and a high level of security, perfectly matching the overall performance of the window and door system.
Cases
