Stop Heat Loss & Upgrade Comfort: Thermally Broken Aluminum Windows for Australia

With rising energy efficiency requirements from the Australian National Construction Code (NCC) and the Nationwide House Energy Rating Scheme (NatHERS), door and window systems play a critical role in building envelopes. The ProLine AU system is engineered for Australian residential and commercial projects, combining advanced thermal breaks, multi-chambered profiles, high-performance insulated glazing, and multi-layer sealing to achieve superior thermal performance while maintaining structural stability and design flexibility.

Why Thermal Performance Matters for Australian Doors and Windows

Australia’s diverse climates—from tropical to temperate, humid to arid—pose unique challenges. Aluminum conducts heat rapidly; without effective thermal breaks, it can create thermal bridges, leading to winter heat loss, summer heat gain, and condensation in coastal or high-humidity regions. The ProLine AU system employs vertically and horizontally continuous polyamide thermal separators, combined with multi-chambered profiles, effectively interrupting heat transfer, eliminating cold spots, and significantly reducing condensation.

Thermal Challenges in Doors and Windows

A key challenge for doors and windows is balancing thermal bridge control with structural strength. Large sliding or entry doors with insufficient thermal breaks can conduct heat rapidly and risk hardware wear or structural deformation. ProLine AU optimizes thermal break depth and profile cross-sections, allowing flexible matching of thermal break materials to door/window sizes and glazing thickness, while supporting multipoint locks, sliding hardware, and other accessories to ensure long-term stability for large-format doors and windows.

Core Technologies of ProLine AU Thermally Broken Doors and Windows

1. High-Performance Thermal Breaks

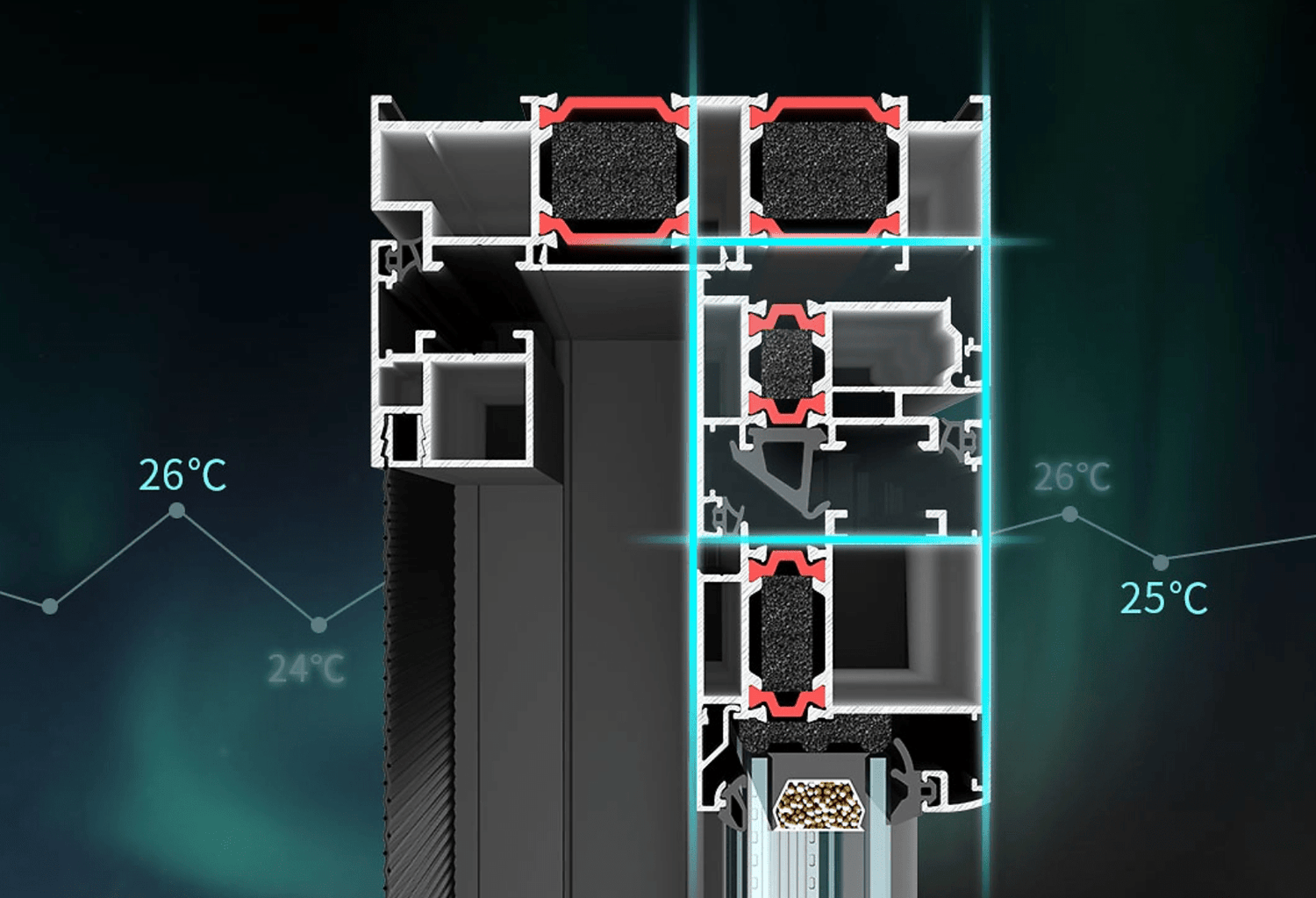

The ProLine AU system utilizes polyamide thermal breaks, continuously installed in vertical and horizontal directions to eliminate cold spots and reduce heat transfer. The thermal break depth can be adjusted to match glazing types—from double to triple insulated glass units (IGU)—allowing doors and windows to achieve Standard → High → Ultra Thermal Performance levels.

2. Double/Triple Glazing with Low-E Coatings

Windows and doors can be equipped with double or triple glazing, filled with inert gas (e.g., argon) and Low-E coatings to enhance thermal resistance, reduce solar heat gain (SHGC), and improve acoustic performance, supporting NatHERS energy efficiency compliance.

3. Multi-Layer Sealing System

The system combines cavity gaskets, EPDM seals, and snap-in gaskets to form an air barrier, effectively blocking air infiltration, water ingress, and heat transfer, maintaining airtightness, watertightness, and thermal performance even in coastal and high-humidity areas.

4. Profile Optimization & Design Flexibility

Multi-chambered profiles combined with optimized thermal break depths increase thermal resistance while maintaining structural strength. Unique profile designs allow complex shapes, support large-format custom doors and windows, and provide hardware compatibility (multipoint locks, sliding systems), meeting architects’ and developers’ demands for design flexibility and aesthetics.

5. Compliance with Australian Standards

The ProLine AU system complies with AS2047-2014 and AS4284-2017 standards, ensuring airtightness, watertightness, and wind load resistance, while supporting NatHERS energy efficiency ratings.

Performance Indicators (Example: 105mm Series)

Parameter	Window	Door	Unit	Notes
U-value (Glazing)	2.6–3.2	2.8–3.5	W/m²·K	Depends on thermal break depth and IGU type
SHGC	0.55	0.50	—	Summer solar heat gain coefficient
Airtightness	4	4	—	AS2047-2014 rating
Watertightness	E750	E750	—	AS2047-2014 rating
Wind Load Resistance	B5	B5	—	AS2047-2014 rating
Acoustic Performance	Rw 33dB	Rw 32dB	—	Door slightly lower but still within comfort standard

Note: Performance levels can be adjusted by thermal break depth and IGU type to achieve Standard → High → Ultra Thermal Performance.

Application Advantages: From Developers and Contractors’ Perspective

• Residential Projects: The high-performance thermal breaks, multi-chambered profiles, and multi-layer sealing of ProLine AU doors and windows significantly reduce heat loss and condensation, maintaining warmth in winter and blocking heat in summer. Developers benefit from reduced building energy demand, optimized NatHERS energy ratings, and measurable project value, while lowering long-term operational costs.
• Commercial and Mixed-Use Projects: Large-format sliding doors and window combinations improve indoor comfort while reducing HVAC loads and energy costs. Developers and contractors benefit from modular sizing and standardized installation, shortening construction timelines and reducing labor costs, while ensuring long-term performance and minimizing maintenance.
• Coastal and High-Humidity Areas: Corrosion-resistant aluminum with high-durability coatings, combined with multi-layer sealing and thermal breaks, effectively withstand wind loads, water infiltration, and coastal corrosion. For developers, this ensures long-term performance stability in coastal residential or commercial projects, minimizing risks and costs from replacements, repairs, or structural degradation, while safeguarding overall project quality and return on investment.
• Customization and Design Flexibility: Adjustable thermal break depths and multi-chambered profiles enable complex shapes while supporting multipoint locks, sliding systems, and other hardware. Developers and architects can tailor door and window designs to project style and façade requirements, enhancing architectural aesthetics and market appeal.

Conclusion



The ProLine AU system combines adjustable thermal break depth, optimized multi-chambered profiles, double/triple Low-E IGUs, and multi-layer sealing to deliver superior thermal performance, structural stability, and design flexibility, providing efficient, comfortable, and durable door and window solutions for Australian residential and commercial buildings.

Interested in learning more about ProLine thermally broken windows, customization options, or pricing? Contact our expert team today to receive tailored door and window solutions that enhance both energy efficiency and architectural aesthetics for your project.
